Carbonated Soft Drink Filling Line
Modern Machinery provides complete CSD lines for cola, soda water, sparkling water and energy drinks. From syrup mixing and isobaric (counter-pressure) filling to labeling and packing, we deliver turnkey solutions with FAT testing and verified project cases.
What is a carbonated soft drink line?
At Modern Machinery, a carbonated soft drink line is a complete production system that prepares water and syrup, carbonates the beverage, fills pressurized containers, labels bottles, packs finished products and prepares them for shipment. We supply both standalone CSD filling machines (monobloc) and complete turnkey CSD filling lines.
For CSD production, the core technology is isobaric filling. PET bottles, glass bottles and aluminum cans each require a different filling, sealing, conveying and packing configuration. Modern Machinery’s lines are engineered to maintain CO₂ stability across all three formats.
What is your packaging format?
Carbonated drink projects should be planned by container format first, because PET bottles, glass bottles and aluminum cans require different filling, sealing, conveying and packing equipment.
Aluminum can
Glass bottle
PET bottle
Packaging format overview: aluminum can, glass bottle and PET bottle. The selected format determines the filling machine, sealing method and downstream packing design.

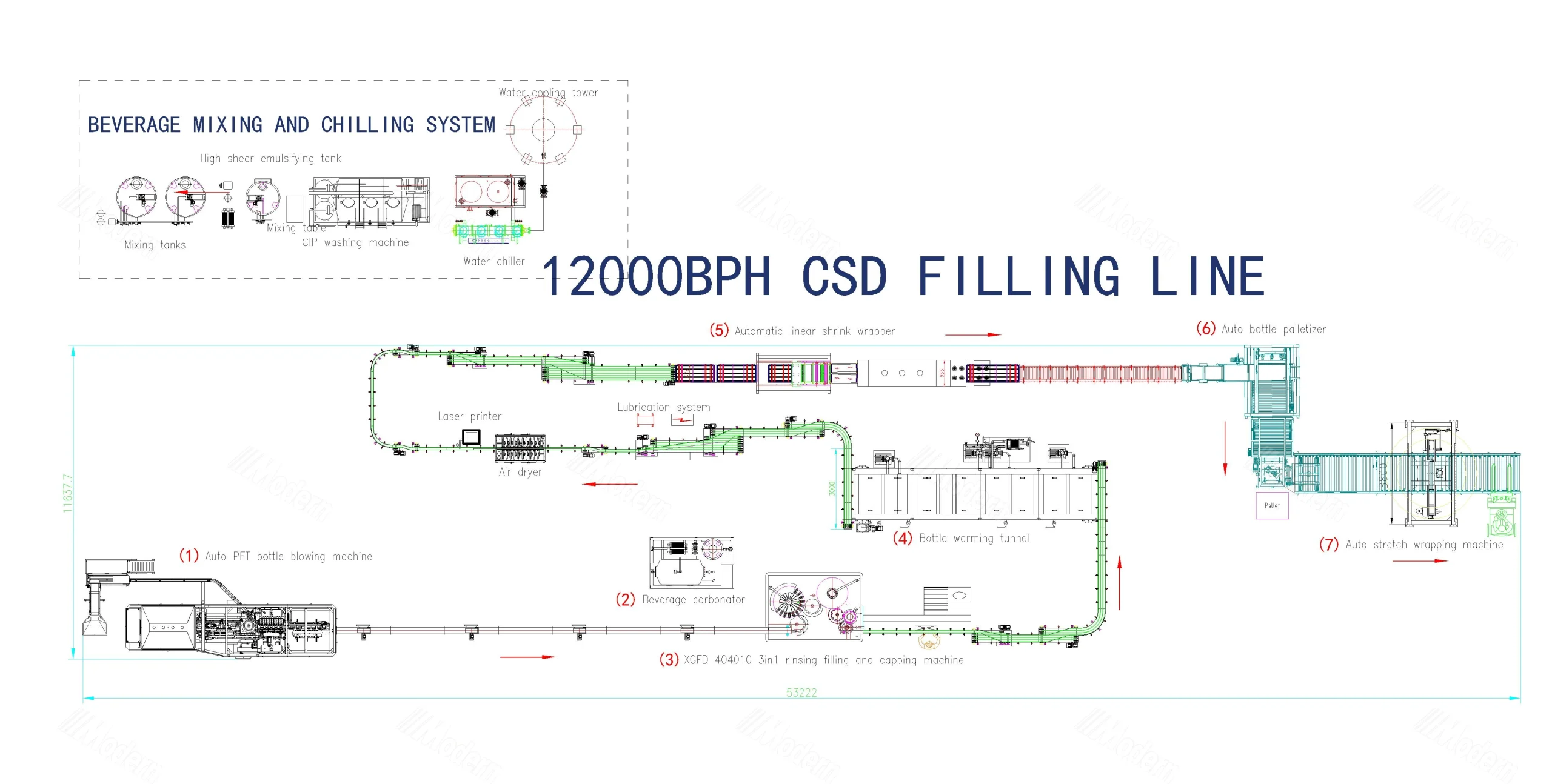

Carbonated soft drink line layout from blowing to shrink packing
A layout drawing helps buyers understand the real machine sequence, floor space, conveyor connection and downstream packaging flow before requesting a quotation.
Seven key machines in a PET bottle carbonated drink line
The process below follows the layout drawing, so buyers can match each step to a specific machine and understand what is included in the complete line.
Auto PET bottle blowing machine
Beverage carbonator
3in1 carbonated drink filling machine
Bottle Warming Tunnel
Automatic linear shrink wrapping machine
Auto bottle palletizer
Auto stretch wrapping machine
Key specifications to tailor your CSD line
Providing these details upfront helps our engineers match the right capacity, container format and packing configuration to your factory layout, so you receive an accurate, no-surprise quotation from day one.
| Product | Carbonated soft drink, cola, soda water, sparkling water, energy drink |
|---|---|
| Packaging Format | PET bottle, glass bottle or aluminum can. Each format uses a different filling, sealing and packing configuration. |
| Capacity Range | 3,000 to 20,000+ BPH depending on bottle size and configuration |
| Filling Method | Isobaric pressure filling for CO2 retention and foam control |
| Main Machine | Rinsing, filling and capping monoblock |
| Complete Line Scope | PET bottle blowing, beverage carbonator, 3-in-1 carbonated drink filling, cap feeding, bottle warming, air drying, OPP labeling, inkjet coding, PE film shrink packing and conveyor layout |
Rinser-filler-capper monoblock for PET bottle CSD
Bottle clamps and spray nozzles rinse PET bottles before filling.
Pressure-balanced filling helps control foam and preserve carbonation.
Stable cap sorting and torque control improve sealing consistency.
Sensor logic reduces waste and improves daily operation safety.
Sanitary pipelines and cleaning interfaces support production hygiene.
Air conveyor and flat conveyor connect blowing, filling and packing.
Project workflow from formula to installation
Formula & Bottle Analysis
Confirm carbonation, bottle size, cap type and filling temperature.
Layout Design
Plan syrup room, filling block, packing line, utilities and operator space.
Manufacturing & FAT
Assemble, test and document the line before shipment.
Installation & Training
Support commissioning, operator training and spare parts planning.
Real CSD line production videos – build confidence before you inquire
Seeing the equipment running with real bottles, real speeds and real output is the best way to verify our manufacturing quality before you submit your project details.
Australia Chemical Case Packing Machine
An automatic case erecting, bottle packing and carton sealing system developed for an Australian chemical liquid project. The SS316 system handles 5L HDPE bottles and completes carton forming, bottle loading and case sealing at 14 cases per minute.
High-Speed OPP Labeling Machine
A high-speed rotary OPP hot melt glue labeling machine for 500ml PET water bottles.
PET Bottle Blowing Machine
A six-cavity automatic PET bottle blowing machine for producing 500ml beverage bottles at 8,000 BPH.
Explore our completed csd filling line projects
How to choose the right carbonated drink line
By capacity
- 3,000 BPH for entry-level production
- 6,000-12,000 BPH for growing brands
- 15,000+ BPH for high-output factories
By container
- PET bottle for flexible size and cost
- Glass bottle for premium positioning
- Aluminum can for fast chilling and distribution
By factory plan
- Confirm layout space and utility supply
- Reserve upgrade paths for future output
- Match packing style to local distribution
Frequently asked questions about CSD filling lines
What machines are included in a carbonated soft drink line?
A complete line can include water treatment, syrup mixing, carbonation, bottle blowing, rinsing, isobaric filling, capping, labeling, coding, shrink packing, carton packing, conveying and palletizing.
Why does CSD filling need isobaric filling?
Carbonated drinks contain dissolved CO2. Isobaric filling pressurizes the bottle before filling, helping reduce foam and gas loss.
Can one PET CSD line run different bottle sizes?
Yes. Bottle changeover parts can be configured for different bottle volumes and neck finishes, depending on the exact machine design.
What information is needed before asking for a quote?
Prepare product type, bottle size, target BPH, factory dimensions, voltage, packing style and whether you need syrup room, bottle blowing or palletizing.
