3in1 Small Bottle Water Filling Machine
Compact 3-in-1 water filling machine combining rinsing, gravity filling and capping for 200 ml–2 L PET water bottles, capacity up to 24,000 BPH.
What is a 3in1 small bottle water filling machine?
A 3-in-1 small bottle water filling machine performs rinsing, filling and capping in a single monobloc. Empty PET bottles are gripped by the neck, inverted and rinsed, then filled by gravity or negative pressure to a consistent level, and finally capped. Combining the three operations keeps the line compact and reduces bottle transfer and contamination risk.
200 ml–2 L

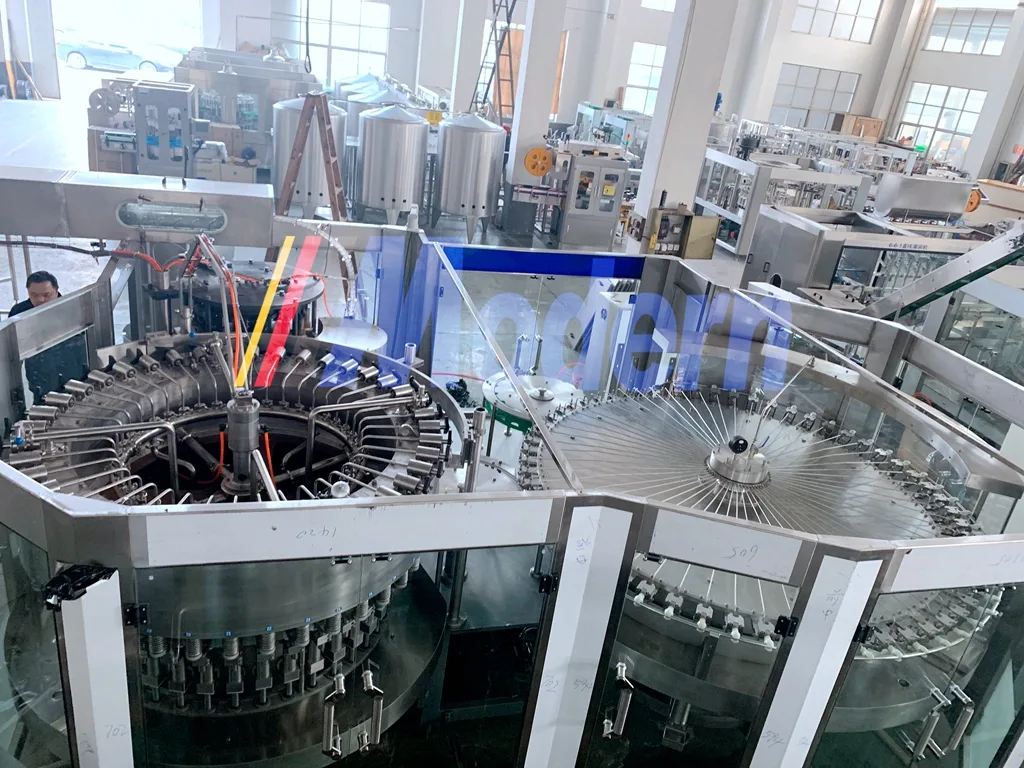

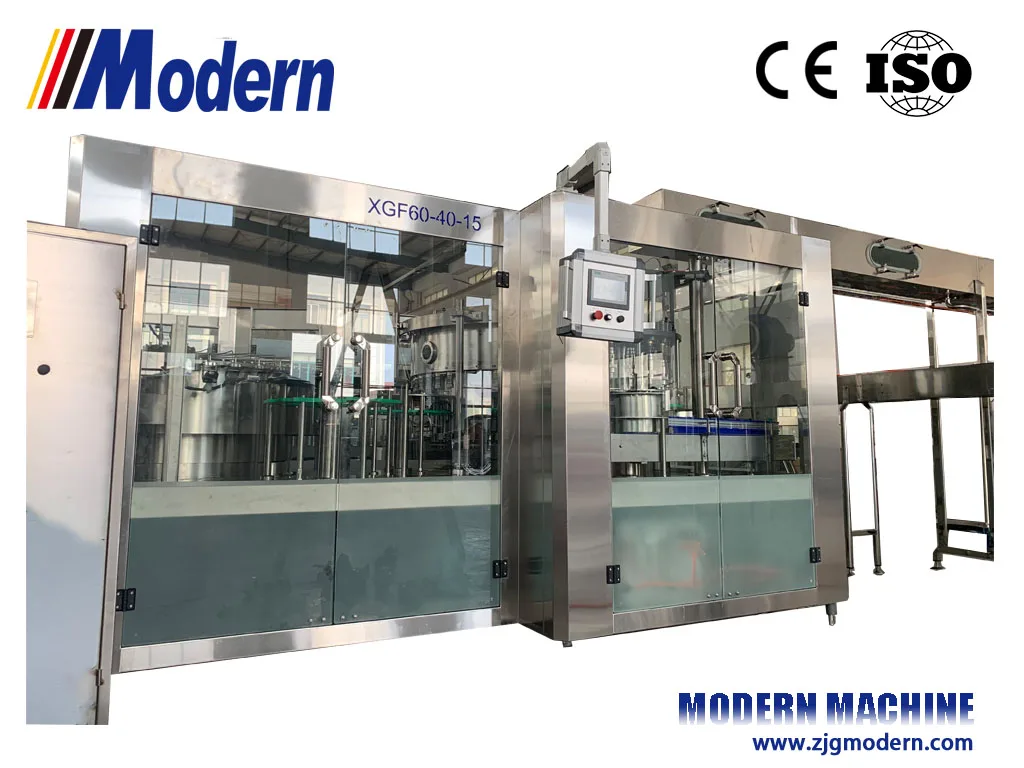

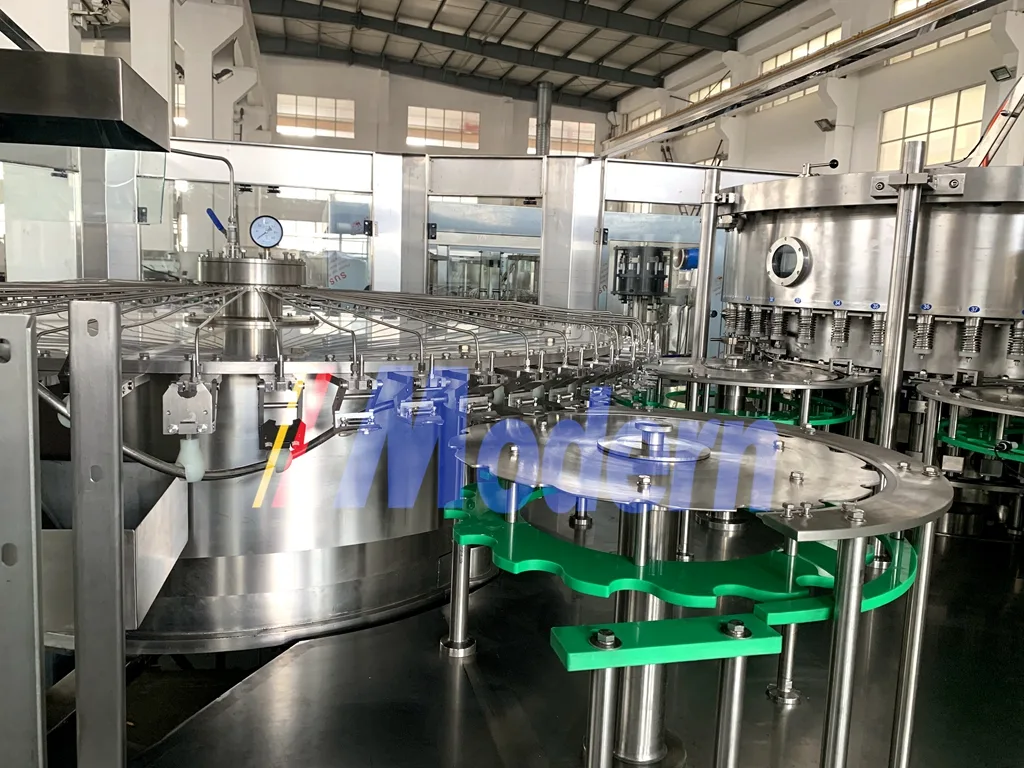

Detailed machine views for buyer verification
A detail page should show enough visual proof for buyers to inspect frame, filling area, capping system and operator-facing design.
3in1 Small Bottle Water Filling Machine specification checklist
Use the table as an inquiry guide. Exact configuration depends on your product, container, capacity and line integration.
| Container | PET bottle |
|---|---|
| Bottle Volume | 200 ml–2 L |
| Filling Method | Gravity / negative-pressure |
| Filling Heads | Configured by capacity |
| Capacity | Up to 24,000 BPH |
| Capping | Plastic screw cap |
| Drive | Variable-frequency / servo |
| Control | PLC + touchscreen |
| Rinsing | Inverted sterile-water |
| Material | Food-grade stainless steel |
Core assemblies buyers should review
bottle-neck clamping reduces deformation and improves stability.

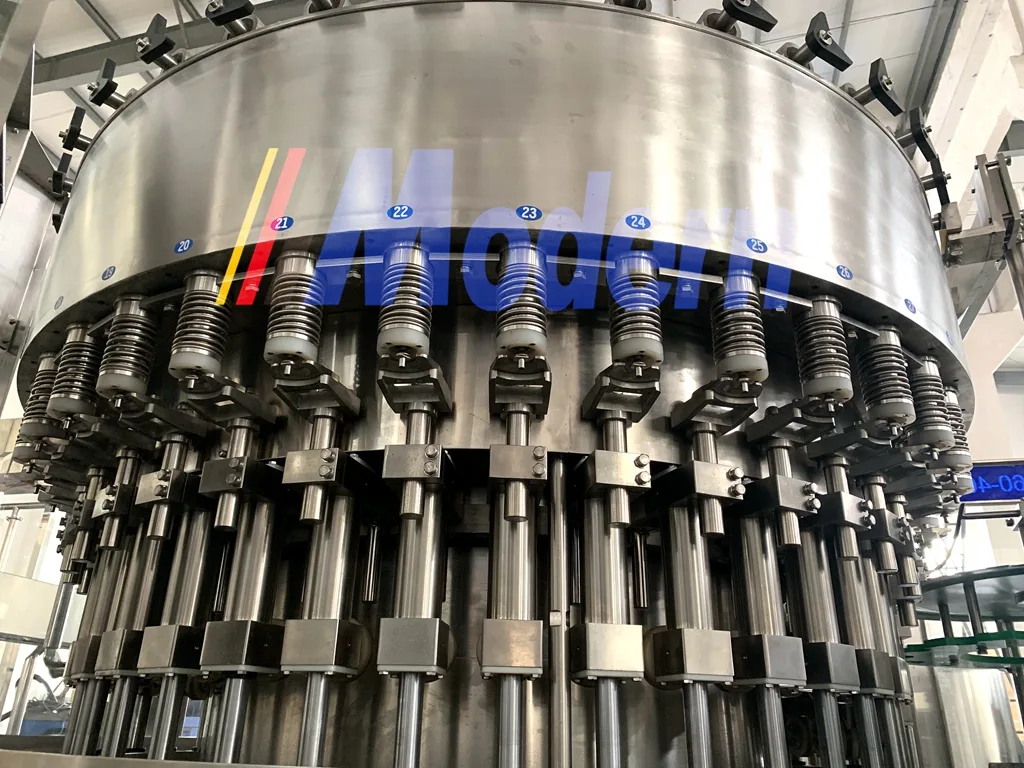

stable, level-accurate filling for still water.
inverted sterile-water rinsing supports hygienic filling.
cap surface treatment before capping.
change parts for multiple bottle volumes.
stainless-steel product contact for drinking water.

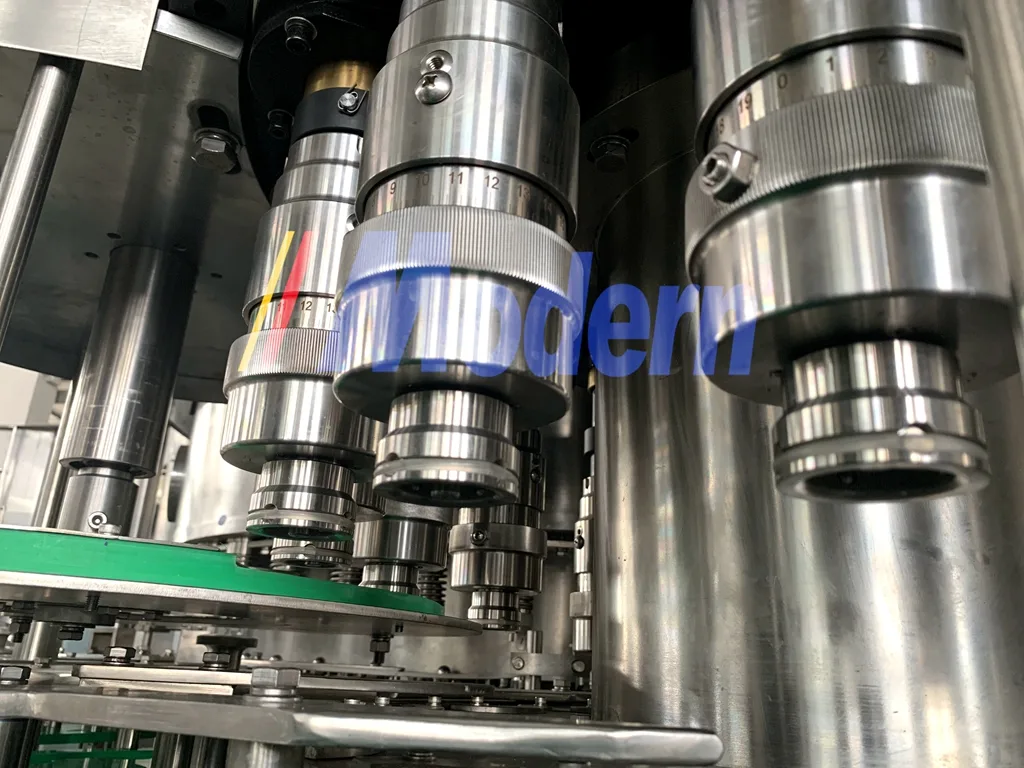

touchscreen operation with fault alarms and monitoring.
How to configure a 3in1 small bottle water filling machine project
Empty PET bottles are fed and positioned by the neck.
Bottles are inverted and rinsed with sterile water.
Bottles are filled by gravity or negative pressure to a consistent level.
Caps are sterilized and applied immediately.
Filled and capped bottles move to labeling and coding.
Bottles are conveyed to shrink wrapping or case packing.
