XGF18186
Modern
1. Bottle blowing system make PET plastic bottles ( Semi automatic / Fully automatic )
2. Water treatment system (Sand filter, carbon filter, RO/UF ,Ozone sterilizer, UV sterilizer and etc.)
3. Air conveyor for empty bottle loading
4. 3in1 monoblock Water filling machine
5. Cap loader load caps
6. Code printer (Ink-jet printer/ laser-jet printer)
7. Air Dryer
8. Labeling machine ( PVC sleelve labeling machine/OPP hot melt glue labeling machine/Self-adheisive labeling machine )
9. End packaging ( PE shrink wrapping machine/ Carton packing machine )
How to deploy mechanical filler sysetm to keep water crystal clear and contaminant free? How to achieve the maximum benefit with speed, accuracy and light weight bottles? Modern Machinery, the expert in automatic water filling machine, will always provide you with the best solution for your products.
XGF18186 automatic 3in1 water filling machine integrates washing, filling and capping three functions. Water filling machine is widely used in the filling of various airless liquid materials, such as mineral water, purified water, drinking water, mountain spring water, etc., with an output of 2000-30000 bottles per hour. The water filling line includes bottle blowing machine, water treatment equipment, blow dryer, sleeve labeling machine, ink jet printer, carton packing machine or PE film package.
3in1 Water filling machine has advanced structure, work balance, safe operation, convenient maintenance, stepless speed regulation and high production efficiency. This automatic water filling machine is an ideal equipment for small and medium-sized water plants. The 3in1 filling machine adopts touch screen operation, which can realize man-machine dialogue and real-time display of equipment operating status. The water filling machine adopts an efficient cap sorting and automatic cap supply system, and has an excellent cap feeding and cap missing protection device.
Bottle Washing System:
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

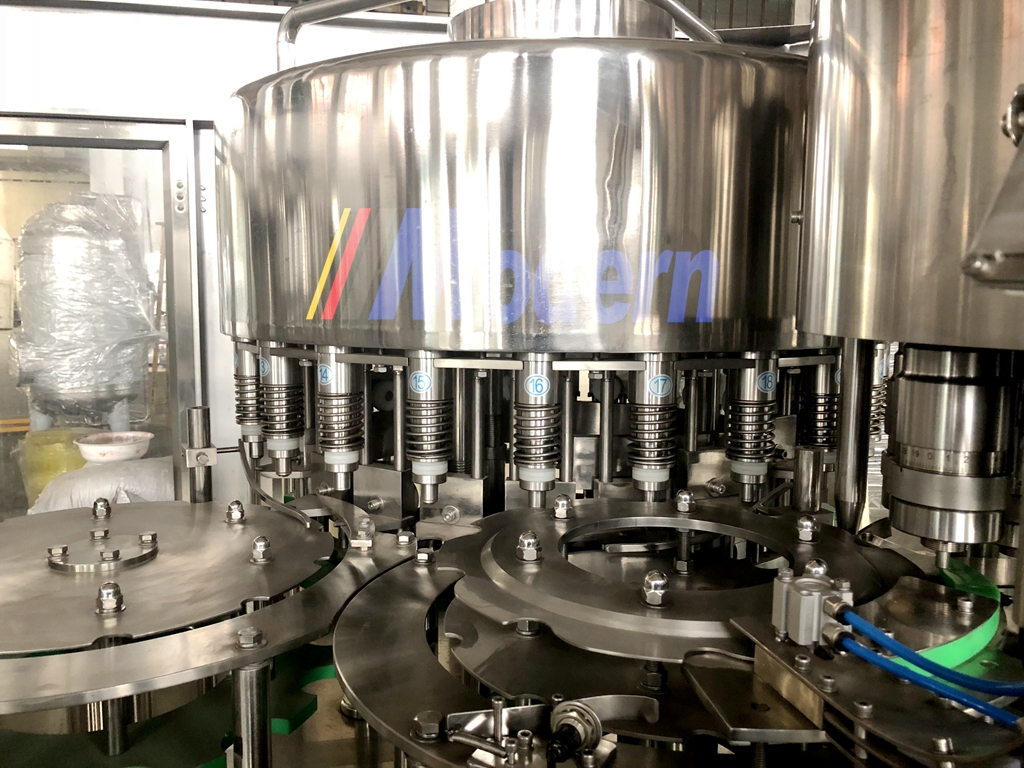

Bottle Filling System:
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
Water Filling Principle
Bottle Capping System:
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
Controling system
- PLC control
- Touch screen
Electric part
- All the electric parts are well-known brand
Model | XGF18186 Water filling machine |
Heads of washing, filling and capping | 18-18-6 |
Production , capacity(bottle/hour) | 5000-8000 |
Suitable bottle diameter(mm) | φ=50-100 H=170 330-1500ml |
Spraying pressure(kg/cm2) | 2~3 |
Motor power(kw) | Main, motor 2.2kw |
overall dimension(LxWxH)(mm) | 2600x1900x2550 |
Weight(kg) | 3500 |
Service
MODERN MACHINERYoffers engineer to assist you in installing your filling machine. Upon installation of your equipment or line, the engineer stays on-site to watch your new equipment run smoothly and train your operators. Even after our specialist leaves your plant, we are ready to give you timely, courteous service when you need it.
Our engineer offers the following services:
1. Installation of equipment or packaging line at the customer's plant
2. Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
3. Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment's performance
4. Resolve equipment issues
5. Provide on-site training on all assigned procedures
Filling machine machining center
Container loading and shipping
