Water Treatment Plant System

Availability:
Quantity:
  • RO
  • Modern

Full Automatic PET Bottle Water Filler System Includes

1. Bottle blowing system make PET plastic bottles ( Semi automatic / Fully automatic )

2. Water treatment system (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)

3. Air conveyor for empty bottle loading

4. 3 in 1 monoblock Rinser filler capper

5. Cap loader load caps

6. Code printer (Ink-jet printer/ laser-jet printer)

7. Air Dryer

8. Labeling machine ( PVC sleelve labeling machine/OPP hot melt glue labeling machine/Self-adheisive labeling machine )

9. End packaging ( PE shrink wrapping machine / Carton packing machine )


layout1

How to deploy mechanical filler sysetm to keep water crystal clear and contaminant free? How to achieve the maximum benefit with speed, accuracy and light weight bottles? Modern Machinery, the expert in bottle water filler machine, will always provide you with the best solution for your products.

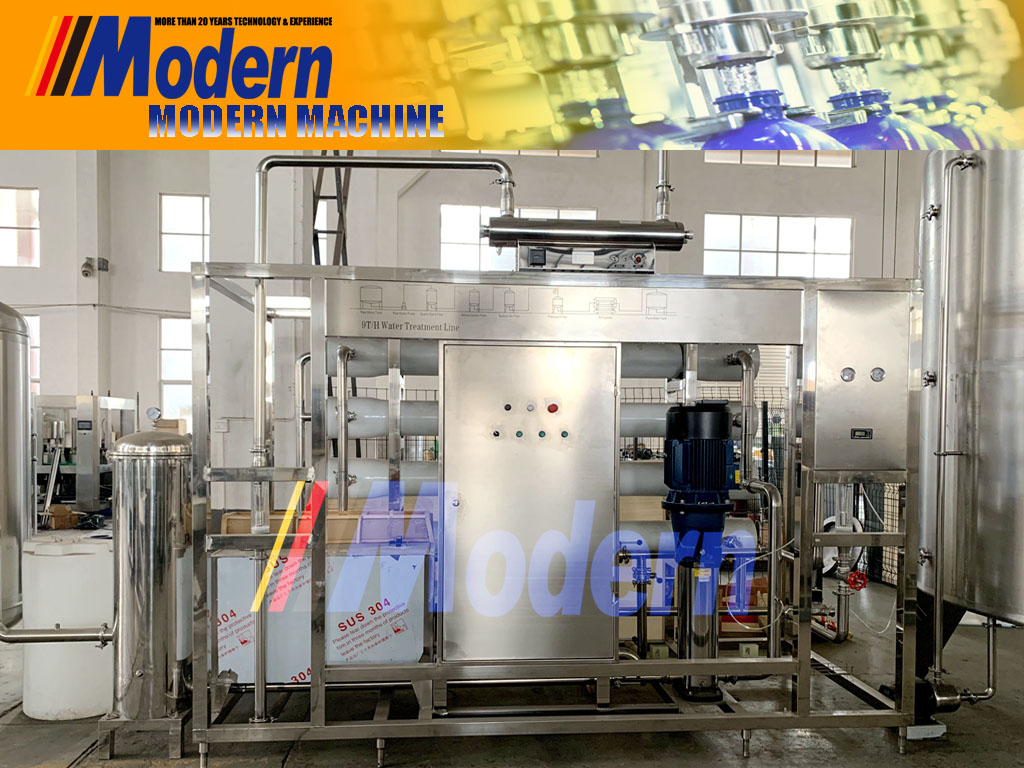

Water Treatment Plant System

This Water treatment System is using reverse osmosis technology for desalination, reverse osmosis membrane was only 0.001 micron pore size, can be harmful to remove dissolved solids and bacteria, viruses, etc., desalination rate of more than 99.6 percent, in line with national standards to produce pure water, the host section contains the security filter, high-pressure pump and reverse osmosis membrane, security filters for the fourth grade and above pre-treatment systems, high-pressure pump is the host of one of the core equipment for the reverse osmosis membrane elements to provide sufficient pressure to overcome the penetration resistance to pressure and run to meet the needs of a device to achieve the rated water.


 Mineral water plant(2)


Characteristic of RO Water Treatment System

1. Continuous water production without the need of regeneration, reducing labor strength;

2. Ultra-low pressure film imported from USA, with a high desalting rate of 97~98%;

3. Removing 98% of organic matters and bacteria, with a heat source of more than 98;

4. Online electric conductivity monitoring, ensuring good water quality;

5. PLC microcomputer monitoring, flushing the reverse osmosis film at regular intervals.


 RO Water plant

RO mienral water plant


Technical Flow Chart of Mineral Water Plant

Raw water → Source water tank → Source water pump → Quartz sand → filter Active Carbon filter → PP sediment filter → RO main machine → Ozone sterilizer → Pure water tank


 Model   RO-1000    RO-2000   RO-3000   RO-4000   RO-5000   RO-10000
 m3/h Production Capacity   1T/H  2T/H   3T/H  4T/H  5T/H  10T/H
 Power kw   1.87  2.05  2.57  2.75  3.25  7.5
 Desalt rate   98%
 Rate of recovery   50-60%
