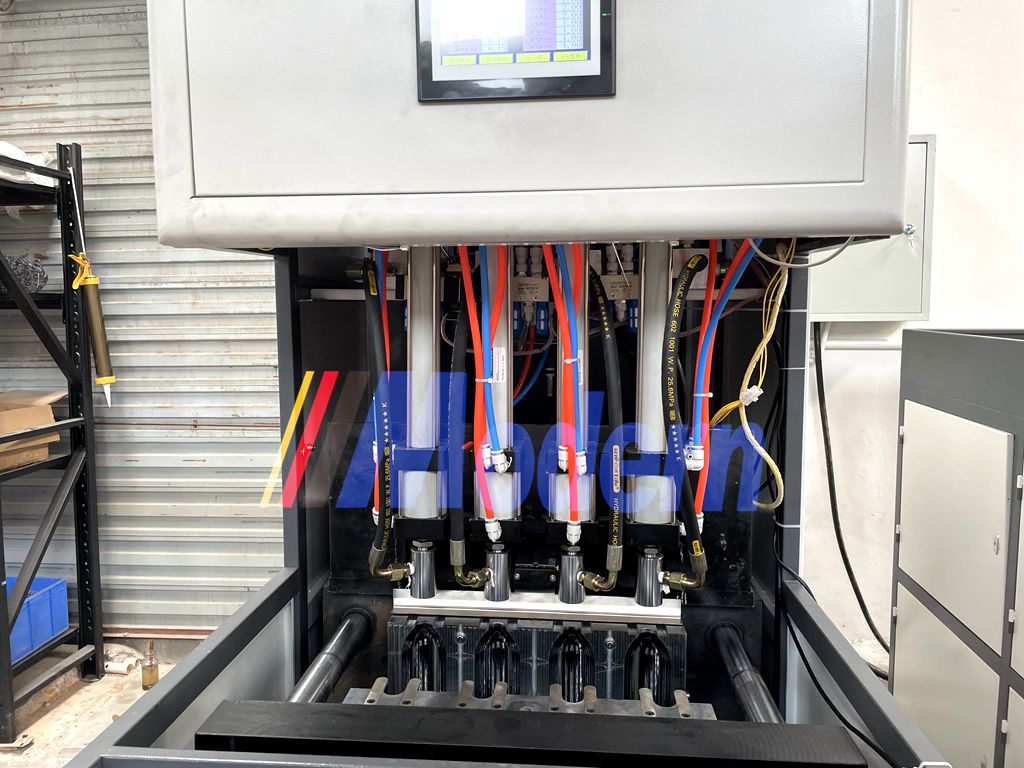

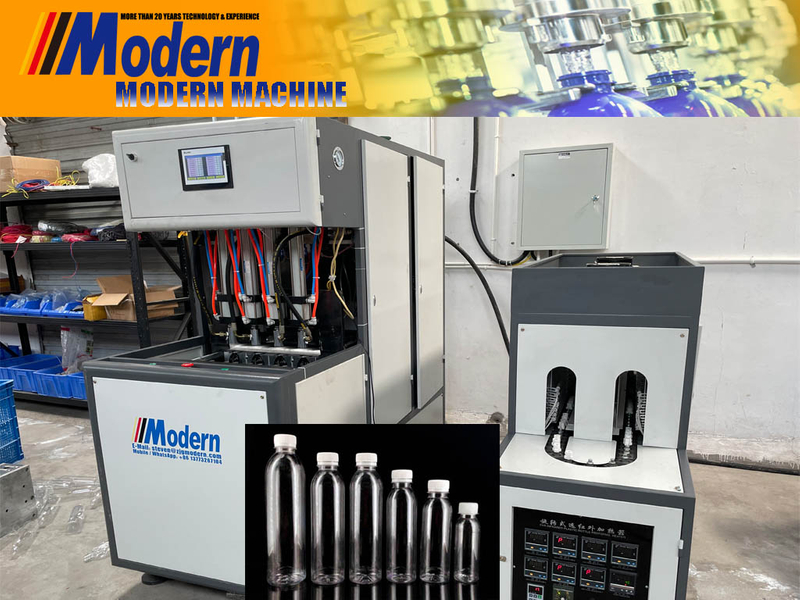

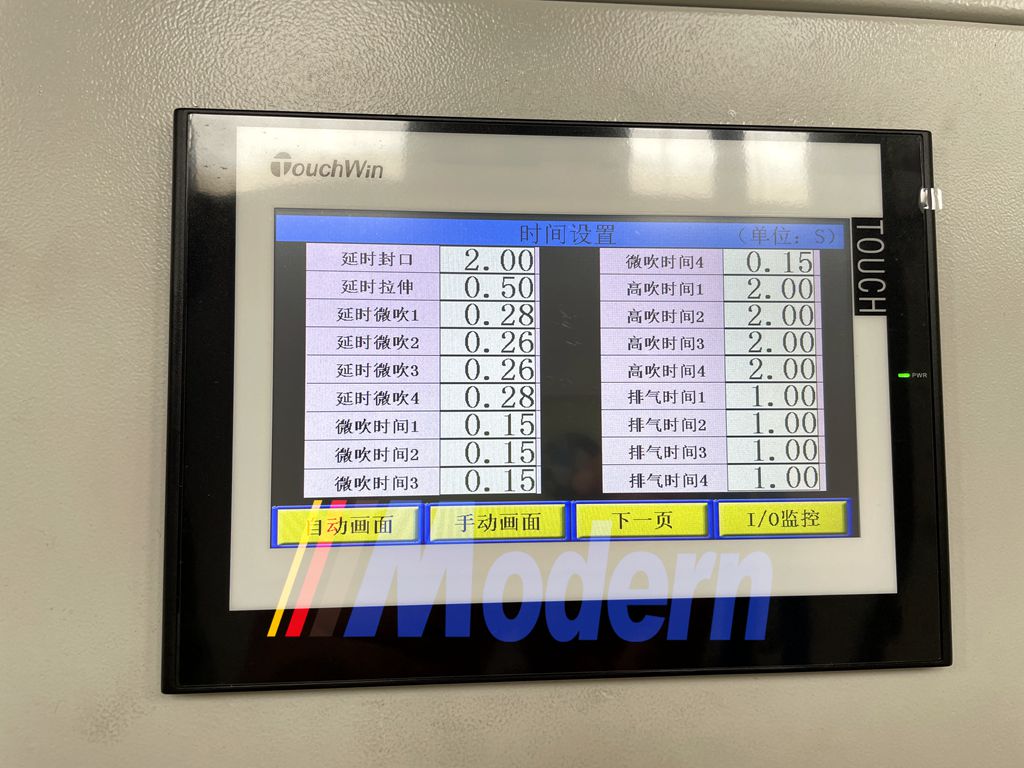

This semi automatic 4 cavities bottle blowing machine is updated from old type semi auto 2 cavities bottle blower. It uses PLC with HMI interface to control the technical parameters, more accurate and stable.
This new PET bottle blowing machine is simple and easy to operate. It requires only one person for operation without any special training and can blow 4 bottles one time. Besides, the bottles will drop by automatic after blowing. Comparing with the old type semi auto bottle blowers, this 4 cavities bottle blower is more efficient and faster.
CP2L-4 semi auto blow molding machine is suitable for blowing plastic PET bottles with different shape design. It’s a good choice for the small beverage companies and daily chemical product companies.
Main machine (blower + oven) | Item | CP2L-4 |
Product Spec | Max. product volume(L/cav) | 2L |
Max. preform neck size(mm) | 100 | |
Max. product diameter(mm) | 180 | |
Max. product height (mm) | 300 | |
Cavities | 4 | |
Bottle blowing part | Die force (KN) | 100 |
Die stroke (mm) | 270 | |
Max. mould size(mm) | 390*345 | |
Mould thickness | Adjustable | |
Mould spacing(mm) | Adjustable | |
Max. pulling stroke(mm) | 400 | |
Operation pressure(Mpa) | 0.8-1.0 | |
Operation air pressure consumption (1tr/min) | 200 | |
Blow pressure(Mpa) | 1.2-2.8 | |
Blow air pressure consumption (1tr/min) | 300 | |
Output(pcs/h) | 1600-2000(500ml bottle) | |
Machine size(LxWxH)(m) | 1.46*0.58*1.8 | |
Machine weight(KG) | 650 | |
Heating oven | Temperature grade(rate) | 8 |
Heating time(S) | 90-200 | |
Voltage(V) | 220 or as your request | |
Frequency(HZ) | 50/60 | |
Total power(KW) | 16 | |
Oven Size (LxWxH) | 1.35*0.55*1.15 | |
Oven weight (KG) | 300 |
