Plastic Bottle Carbonated Beverage Filling Machine

Quantity:
  • XGFD
  • Modern


Complete Carbonated Beverage Filling Line

We supply complete solution of carbonated beverage filling line from A to Z, which includs Water treatment system, Chilling system, beverage carbonating system, Automatic carbonated beverage filling machine, Bottle warming Tunnel, Air dryer, Automatic labeling machine, Automatic bottle packaging machine, Automatic palletizer system and the whole factory conveyor system.


New trends, new products, and new packaging are emerging continuously.

For carbonated beverage filling machine, no matter what products, MODERN will achieve your target with the best technology.


CSD layout

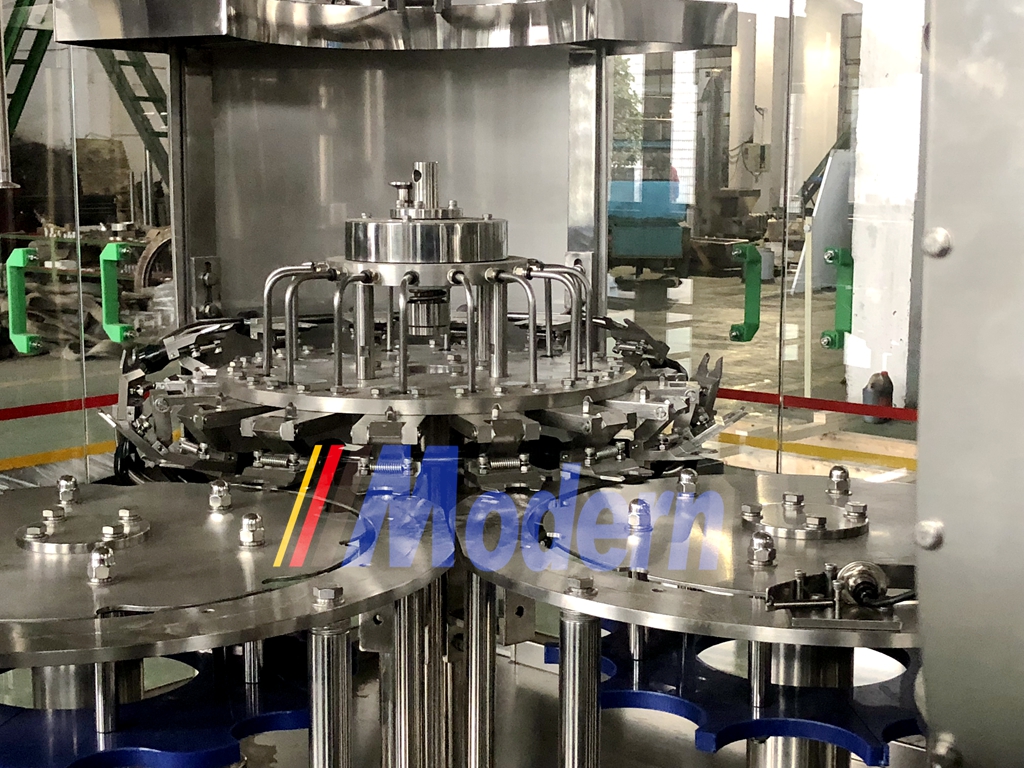

Carbonated Beverage Filling Machine For Plastic Bottle

The series of Carbonated beverage machine is for filling carbonated drink contains washing, filling and capping with complete automation, suitable for filling carbonated beverage into polyester bottles and PET bottles. Carbonated drink machine, soda machine can be used for all kinds of  PET bottles. The bottle neck blocking makes the process of changing bottles easily by only adjusting the height of conveyor chain. The filling process adopts the micro-pressure technology, which makes filling process faster and more stable.


Just check out the whole list of hi-tech Carbonated drink machine at Zhangjiagang Modern Machinery Co., Ltd! You can find each kind of beverage machinery that you want here!

Carbonated beverage machine

1. The air feeding device is used for the bottle, and the bottle neck bottle is adopted. The bottle speed is fast and the bottle is not deformed;
2. This machine uses the advanced card bottle neck technology to avoid contact with the threaded mouth, which is more sanitary. The bottle is transported using the bottle neck technology. The bottle shape does not need to be adjusted, just change the diameter of the bottle. Guard plate;
3. Filling adopts valve lifting technology, and the filling valve adopts the new micro-pressure filling principle, which is accurate and accurate;
4. The screw cap adopts the cap screwing technology introduced by France, and the capper is selected to be installed at a low position and fed horizontally;
5. The machine is compact in structure, complete in control system, convenient in operation and high in automation.


Carbonated Soft Drink Bottle Filling Principle

Carbonated drink Bottle Filling Principle

Carbonated beverage machine(1)

Bottle Rinsing Part:
The rotary wheel is a fully SUS304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.


Carbonated beverage machine(2)

Bottle Filling part:
Rotary wheel fully made of stainless steel SUS 304.
Isobaric filling method.
Filling valves are made of SUS304.
Filling valves are reasonably structured with accurate filling.
Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
Filler is driven through gears inside the machine frame.
Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck





Carbonated beverage machine(3)


Bottle Capping part:
Sealing faucet (main part to control the credibility of sealing), is improved by experts with the design of alnico.
Besides the magnetic contortion variation device, there is variation dial which makes variation more easily. The benefit of this design is not only water bottling machine can set the contortion, but also it makes contortion more precise and credible, and reduces inferior. Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism. Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch. Centrifugal way of cap arranging is adopted to reduce damage of caps.
A cap inspecting system is applied to control on-off of elevator.


 Model
 Heads  of
 washing  filling
 sealing
 Production
 capacity
 (bottle/hour)
 Suitable
 bottle
 diameter
 (mm)
 Filling
 temperature
 (℃ )
 Filler
 type

 Spraying
 pressure
 (MPa)

 Filling
 pressure
 (MPa)
 Motor  power
 (kw)
 Overall dimension
 (LxWxH)
 (mm)
 Weight
 (kg)
 XGFD16126
 16-12-6
 2000-3000
 Φ=50-100=170
330-1500ml
Φ50-Φ110
H=160-340
 0-5
 Balanced
pressure
filler
 0.2-0.25
 0.15-0.35
 2.2+0.55 +0.12
 2300x1600x2500
 2800
 XGFD18186
 18-18-6
 4000-5000
 0.15-0.35
 2.2+0.55 +0.18
 2600x1920x2550
 3650
 XGFD24248
 24-24-8
 5000-6000
 0.15-0.35
 3+0.55 +0.18
 3100x2200x2800
 4800
 XGFD32328
 32-32-8
 6000-9000
 0.2-0.4
 5.5+0.55 +0.18
 3850x3000x2850
 6800
 XGFD404010
 40-40-10
 10000-13000
 0.2-0.4
 7.5
 4850x3800x2750
 8650
 XGFD505012
 50-50-12
 13000-16000
 0.2-0.4
 11
 5750x3550x2750
 10500
 XGFD606015
 60-60-15
 17000-20000
 0.2-0.4
 15
 6500x5500x2750
 12800


Service
MODERN MACHINERYoffers engineer to assist you in installing your bottling machine. Upon installation of your equipment or line, the engineer stays on-site to watch your new equipment run smoothly and train your operators. Even after our specialist leaves your plant, we are ready to give you timely, courteous service when you need it.
Our engineer offers the following services:

1. Installation of equipment or packaging line at the customer's plant
2. Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
3. Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment's performance
4. Resolve equipment issues
5. Provide on-site training on all assigned procedures
