Introduction
XGFL series full automatic Bottle Milk Filling And Aluminum Foil Sealing Machine is used for production of bottle of milk,lactate milk,soy milk,juice etc.The machine completes process of PP / HDPE bottle rinsing vacuum negative pressure filling, automatically form cap, capping(optional) and electricity heat sealing automatically. This milk filling machine adopt PLC control system,electronic and temperature control system, pneumatic control and automatic lubrication.The all parts of touching of milk is stainless steel 304 / 316, besides,the filling nozzles of milk is stainless steel 304 / 316. Because of the form is rotary automatically milk filling and aluminum foil sealing machine, the milk touch the air time is very short, so it could guarantee the quality of milk.
Usage
This PP / HDPE bottle filling machine is widely used for food and pharmaceutical package, especially it’s an ideal equipment for various PP / HDPE plastic bottle filling, high effective aluminum foil cap making and bottle sealing. This milk filling machine reasonably adopts the double slope cover-punching technology and largely developed in the foil usage. Besides, whe whole filling machine integral motor design and the first-rate driving, so the running is stably.
Characteristics
1. The bottle filling type is negative filling. The whole process is negative filling, auto making aluminium foil cap,
electrical heat sealing foil or screw capping(optional).
2. The Valve, PLC control system, photoelectric temperature control, pneumatic control and automatic
lubricating is adopted Germany, Japan etc famous brand.
3. The milk filling and aluminium foil sealing machine is good choose for middle and small milk, juice, tea
factory.
Technical parameter | |||
Model | XGFL12-12-9-1 | XGFL18-18-14-2 | XGFL24-24-18-2 |
production capacity(B/H) | 2000-4000 | 5000-6000 | 8000-10000 |
bottle high(mm) | 150-310 | ||
bottle diameter(mm) | Φ50-Φ90 | ||
filling volume(ml) | 200-1500 | ||
power(kw) | 5.5 | 8.5 | 11 |
dimension(mm) | 2500*1750*2400 | 3000*2050*2400 | 3500*2250*2400 |
weight(kg) | 3500 | 4800 | 5500 |

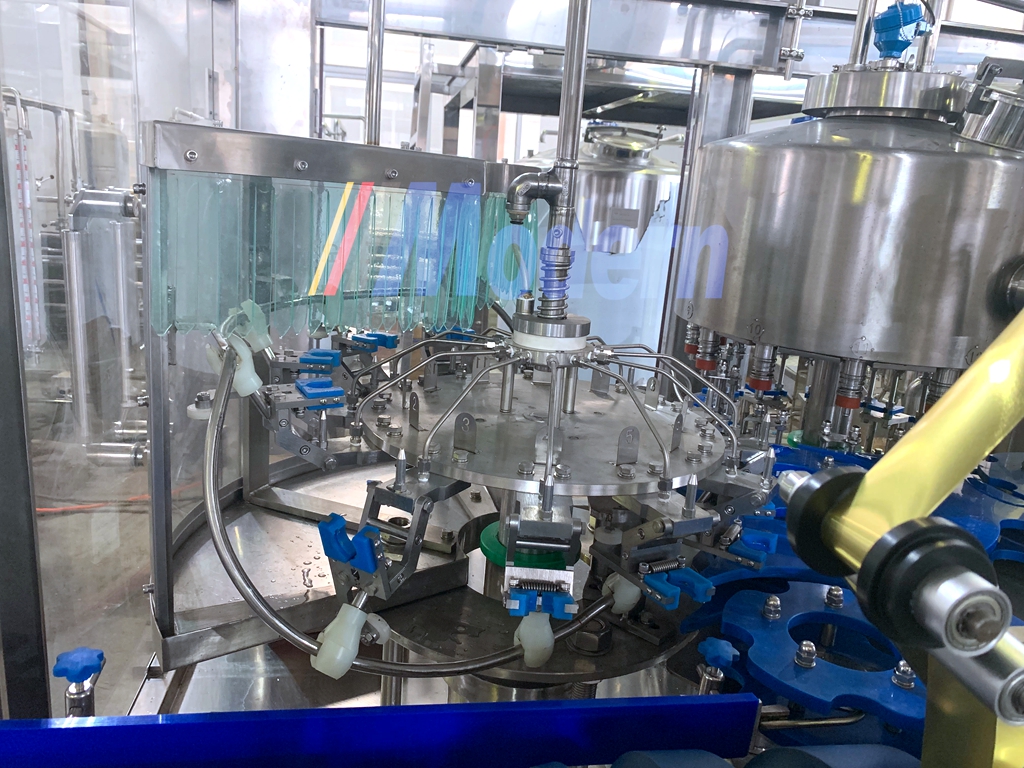

Bottle Rinsing System:
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
Bottle Filler System:
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
On the bases , the filling part of the humanized design excellent performance milk filling machine can be changed into filling methods of lower vacuum. The filling category of lower vacuum is applicable in PP / HDPE / Glass bottles, filling alcohol, soy, tomato sauce, etc . The aluminum foil cap and platic cap can be adopted . The machine is an idea - perfect equipment for milk filling process line.
Water Filler Principle
Aluminum Foil Cap Making System:
- Single / Double / Three aluminum foil cap slope cover-punching technology
Electricity Aluminum Foil Heat Sealing System
- Each sealing head has its separated temperature controling system
- PLC control
- Touch screen
- All the electric parts are well-known brand
Service
MODERN MACHINERYoffers engineer to assist you in installing your bottling machine. Upon installation of your equipment or line, the engineer stays on-site to watch your new equipment run smoothly and train your operators. Even after our specialist leaves your plant, we are ready to give you timely, courteous service when you need it.
Our engineer offers the following services:
1. Installation of equipment or packaging line at the customer's plant
2. Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
3. Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment's performance
4. Resolve equipment issues
5. Provide on-site training on all assigned procedures
Filling machine machining center
Container loading and shipping
