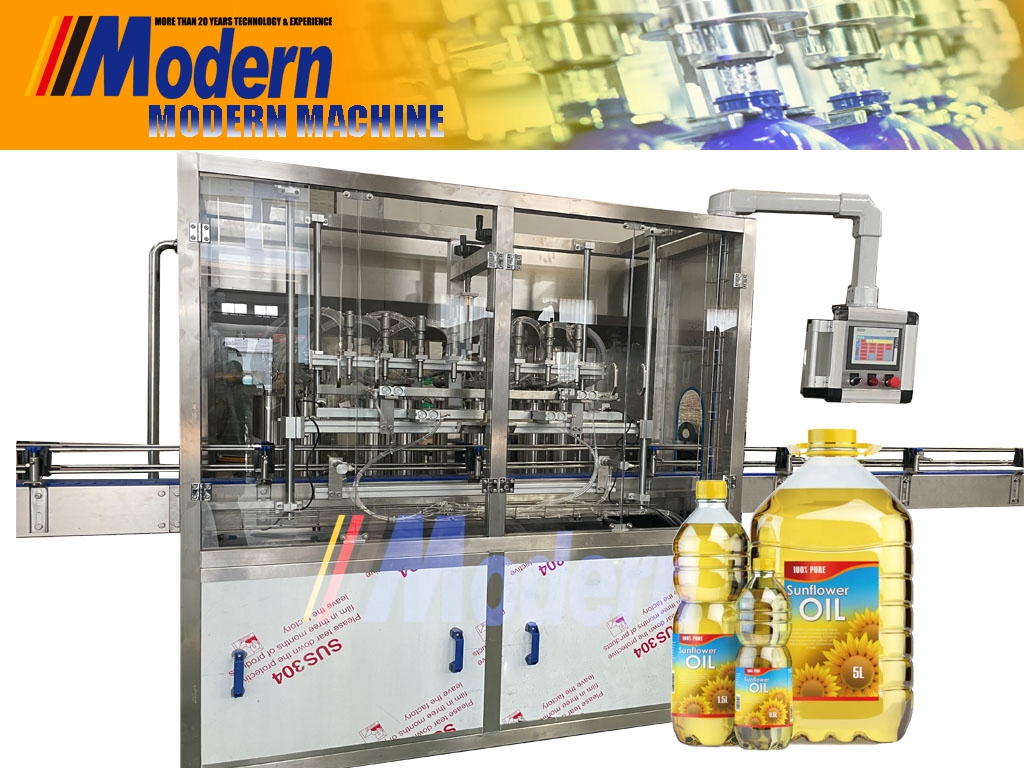

This is our new linear type olive oil filling machine. It adopts piston filling method with two stages filling. When start to fill the bottle, the first stage is fast filling. And at the second stage, it will be slow filling to keep precision without overfilling. It's suitable for the filling of daily chemicals, oil, sauce, detergent liquid, cosmetics, medicinal liquid and explosive liquid.
Product Paramenters
Material | SUS304 and SUS316L | ||||
Filling heads | 4 | 6 | 8 | 10 | 12 |
Filling range | 100-1000ml/ 1000-3000ml/ 3000-5000ml | ||||
Filling speed (bottles/ hour & based on 500ml bottle) | 800-1200 | 1200-1800 | 1800-2500 | 2200-3000 | 2500-3500 |
Filling precision | ±0.5-1% | ||||
Power | 220/380V 50/60Hz 1.5Kw | ||||
Air pressure | 0.4-0.6Mpa | ||||
Machine size (L*W*Hmm) | 1600*900*2200 | 2000*900*2200 | 2400*900*2200 | 2800*900*2200 | 3200*900*2200 |
Weight | 550Kg | 650Kg | 750Kg | 850Kg | 950Kg |
Filling head
Each filling head is made of 304/316 stainless steel material and has anti-drop design. The internal adjustment of the machine is simple. Short adjustment time for replacing bottle shape.
Piston filling cylinder
The piston is drawn back in its cylinder so that the liquid is sucked into the cylinder. A rotary valve then changes position so that the liquid is then pushed out of the nozzle instead of back into the hopper.
Servo motor control
Servo motor can control the filling more accurate and it also can realize the filling nozzle diving bottom-up filling.
Control panel
The filling volume can be adjusted on the touch screen control panel and has automatic fine turning function for each filling head.
This is our new linear type olive oil filling machine. It adopts piston filling method with two stages filling. When start to fill the bottle, the first stage is fast filling. And at the second stage, it will be slow filling to keep precision without overfilling. It's suitable for the filling of daily chemicals, oil, sauce, detergent liquid, cosmetics, medicinal liquid and explosive liquid.
Product Paramenters
Material | SUS304 and SUS316L | ||||
Filling heads | 4 | 6 | 8 | 10 | 12 |
Filling range | 100-1000ml/ 1000-3000ml/ 3000-5000ml | ||||
Filling speed (bottles/ hour & based on 500ml bottle) | 800-1200 | 1200-1800 | 1800-2500 | 2200-3000 | 2500-3500 |
Filling precision | ±0.5-1% | ||||
Power | 220/380V 50/60Hz 1.5Kw | ||||
Air pressure | 0.4-0.6Mpa | ||||
Machine size (L*W*Hmm) | 1600*900*2200 | 2000*900*2200 | 2400*900*2200 | 2800*900*2200 | 3200*900*2200 |
Weight | 550Kg | 650Kg | 750Kg | 850Kg | 950Kg |
Filling head
Each filling head is made of 304/316 stainless steel material and has anti-drop design. The internal adjustment of the machine is simple. Short adjustment time for replacing bottle shape.
Piston filling cylinder
The piston is drawn back in its cylinder so that the liquid is sucked into the cylinder. A rotary valve then changes position so that the liquid is then pushed out of the nozzle instead of back into the hopper.
Servo motor control
Servo motor can control the filling more accurate and it also can realize the filling nozzle diving bottom-up filling.
Control panel
The filling volume can be adjusted on the touch screen control panel and has automatic fine turning function for each filling head.
