CFX-6
Modern

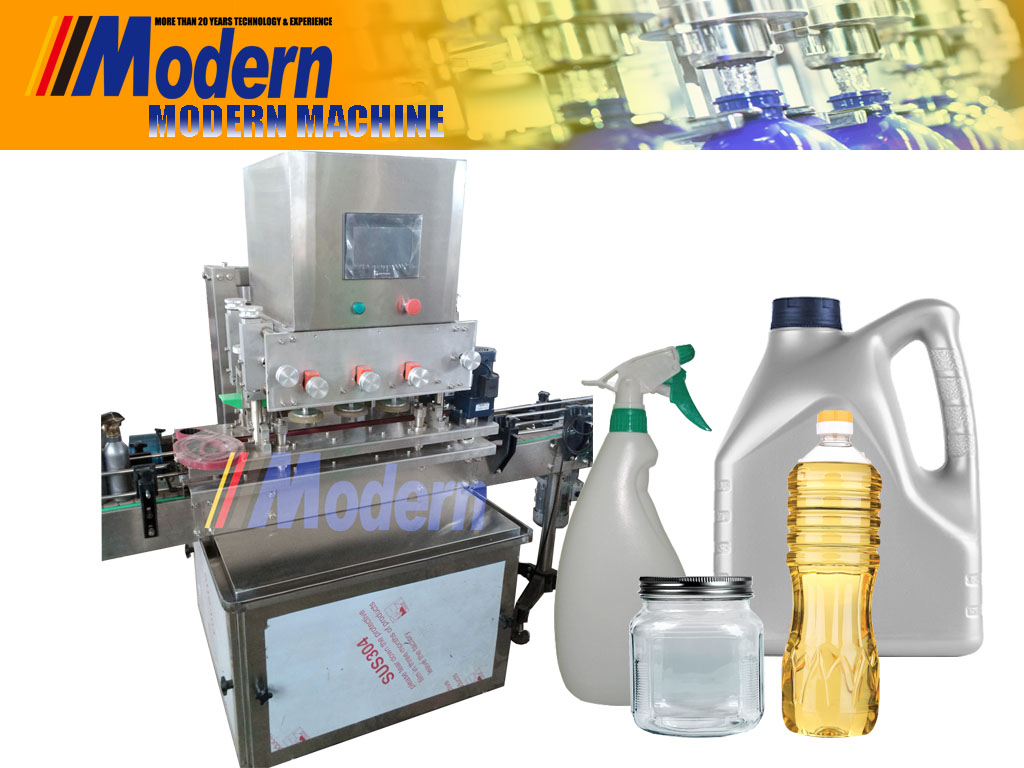

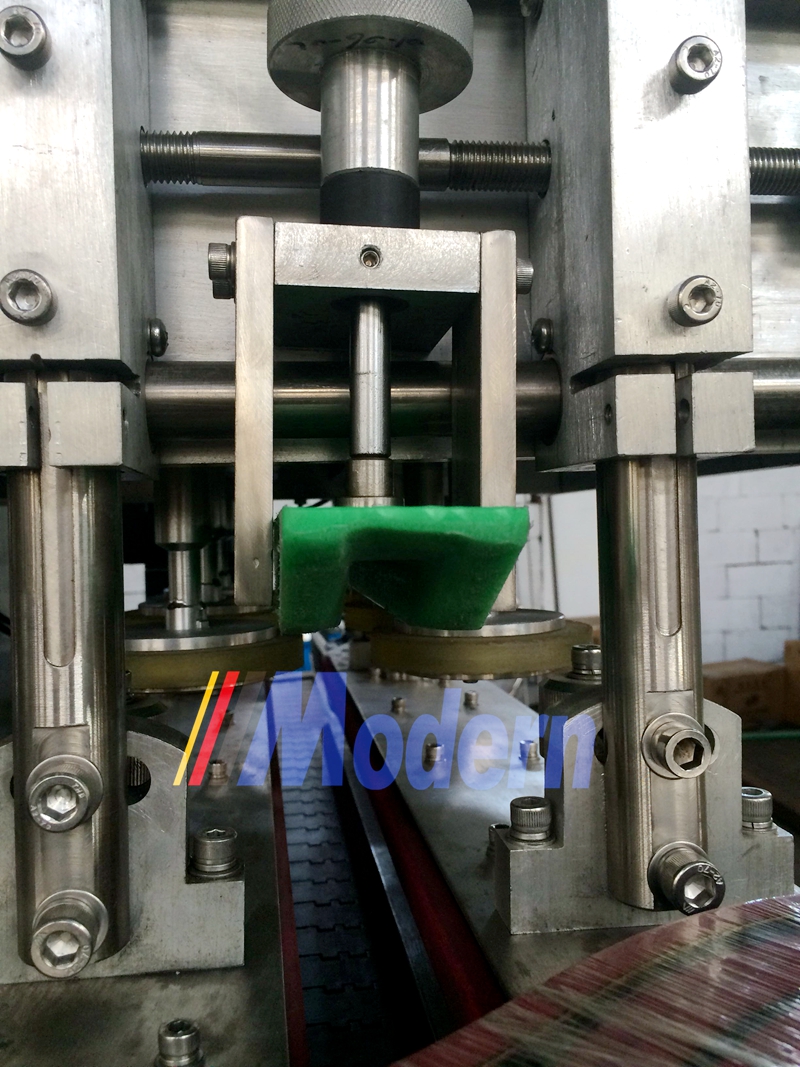

Linear Type Bottle Screw Capping Machine is making up with cap sorter, cap falling rail, bottle-tightening structure and capping wheels. By the tightening of the belts, the bottles finish the movement of cap scratch, push and capping. The capping structure is consist of multiple sets of rubber capping wheels, this makes several bottles can be tightened at the same time. It is suitable for packaging thread caps in food, beverage, cosmetics and dailyt chemical industries.
This linear bottle capping machine is with easy structure and adjustment. When changing the bottle type, you do not need to change the spare part, only adjustment is enough. This machine is equipped with SUS304 environmental cover and main parts is aluminum material, conform to agro-chemical industry environment standard.
Technical Parameters | |
Model | CFX-6 |
Cover method | Elevator sorting cover |
Capping form | Six wheels clamp |
Bottle height | 70-320mm |
Cap diameter | 20-90mm |
Bottle diameter | 30-140mm |
Capping speed | 30-50 bottles/min |
Capping voltage | 1ph AC 220V 50/60Hz |
Air pressure | 0.6-0.8MPa |
Machine weight | About 600KG |
Linear Type Bottle Screw Capping Machine is making up with cap sorter, cap falling rail, bottle-tightening structure and capping wheels. By the tightening of the belts, the bottles finish the movement of cap scratch, push and capping. The capping structure is consist of multiple sets of rubber capping wheels, this makes several bottles can be tightened at the same time. It is suitable for packaging thread caps in food, beverage, cosmetics and dailyt chemical industries.
This linear bottle capping machine is with easy structure and adjustment. When changing the bottle type, you do not need to change the spare part, only adjustment is enough. This machine is equipped with SUS304 environmental cover and main parts is aluminum material, conform to agro-chemical industry environment standard.
Technical Parameters | |
Model | CFX-6 |
Cover method | Elevator sorting cover |
Capping form | Six wheels clamp |
Bottle height | 70-320mm |
Cap diameter | 20-90mm |
Bottle diameter | 30-140mm |
Capping speed | 30-50 bottles/min |
Capping voltage | 1ph AC 220V 50/60Hz |
Air pressure | 0.6-0.8MPa |
Machine weight | About 600KG |
