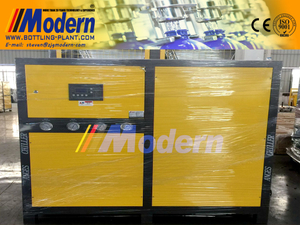

We supply complete solution of carbonated soft drink production line from A to Z, which includs Water treatment system, Chilling system, beverage carbonating system, Automatic carbonated soft drink filling machine, Bottle warming Tunnel, Air dryer, Automatic labeling machine, Automatic bottle packaging machine, Automatic palletizer system and the whole factory conveyor system.
Product Description:
Glass Bottle Sparkling Soda Water Filling Machine Wash-filling-capping 3-in-1unit is used to produce glass bottled soda water with ROPP aluminum cap or pull ring cap. The XGFB series of 3 in 1 monobloc rinisng, isobaric filling, aluminum cap sealing machine adopts advanced technologies of evacuation before filling.
1.The series of sparkling soda water filling machine is made as our customer's need, high filling speed for carbonated CO2 drink, sharing one machine with several glass bottles. It's used in producing all kinds of soda water, sparkling beverage, carbonated drink contained in glass bottle. It adopts the balanced pressure filling technology.
2. Glass bottle washing, filling, aluminum cap sealing can be carried out on the same machine. The design of the machine is scientific and reasonable.
3. The glass bottle sparkling soda water filling machine appearance is beautiful and the function is complete. The operation and maintenance is convenient.
4. The glass bottle sparkling soda water filling machine device can be stopped automatically when there is no bottle or bottles are damaged.
5. The capping head is used for aluminum cap sealing.
6. Caps vibration sorting device is used to avoid damaging the surface of caps, and when there is a shortage of caps in the caps storage tank, an alarm signal will be generated and the caps will be fed automatically.
Glass Bottle Filling Principle
Features:
The Glass Bottle Sparkling Soda Water Filling Machine is controlled by PLC with touch-screen as the interface between human and machine. The amount of the drinks in the drink tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or caps are not available, the machine can be stopped automatically.
Bottle Rinsing Part:
The rotary wheel is a fully SUS304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
Bottle Filling part:
Rotary wheel fully made of stainless steel SUS 304.
Isobaric filling method.
Filling valves are made of SUS304.
Filling valves are reasonably structured with accurate filling.
Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
Filler is driven through gears inside the machine frame.
Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck
Bottle Capping part:
Sealing faucet (main part to control the credibility of sealing), is improved by experts with the design of alnico.
Besides the magnetic contortion variation device, there is variation dial which makes variation more easily. The benefit of this design is not only water bottling machine can set the contortion, but also it makes contortion more precise and credible, and reduces inferior. Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism. Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch. Centrifugal way of cap arranging is adopted to reduce damage of caps.
A cap inspecting system is applied to control on-off of elevator.
Model: | XGFB12-12-4 | XGFB18-18-6 | XGFB24-24-8 | XGFB32-32-10 |
Capacity: B/H (500ml) | 1500-2500 | 4000-5000 | 5000-6000 | 7000-8000 |
Bottle shape: | Normal round or square | |||
Filling liquid | Carbonated drink, soda water | |||
PET bottle: (mm) | (Bottle Diameter): φ50-φ110mm (Height): 150-310mm Volume: 250ml -2000ml | |||
Cap: | ROPP aluminum cap | |||
Filling precision: | ±5mm | |||
Filling pressure | 1.5-3.5 bar | |||
Material | Stainless steel 304 | |||
Power(KW) | 3.0 | 4.0 | 4.2 | 5.2 |
Gas source pressure: | 6 bar | |||
Rinsing pressure: | 2-2.5 bar | |||
Overall size:(mm) | 1900*1500*2350 | 2250*1650*2350 | 2600*1965*2350 | 2980*2200*2250 |
Weight: (KG) | 2500 | 3500 | 4500 | 6500 |
Service
MODERN MACHINERYoffers engineer to assist you in installing your bottling machine. Upon installation of your equipment or line, the engineer stays on-site to watch your new equipment run smoothly and train your operators. Even after our specialist leaves your plant, we are ready to give you timely, courteous service when you need it.
Our engineer offers the following services:
1. Installation of equipment or packaging line at the customer's plant
2. Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
3. Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment's performance
4. Resolve equipment issues
5. Provide on-site training on all assigned procedures
Filling machine machining center
Container loading and shipping
