| Quantity: | |
|---|---|
PXGFD
Modern
We supply complete solution of beer filling and packing line from A to Z, which includs Automatic bottle rinsing filling capping machine, Beer Pasteurization Tunnel, Air dryer, Automatic labeling machine, Automatic carton packing machine and the whole factory conveyor system.
Beer Bottle Filling Principle
Bottle Rinsing Part:
The top-chain conveyor is directly connected with infeed screw
High speed line adopts bottle clamps to transfer the bottle. It makes work much easier when bottle size is changed.
The rotary wheel is a fully SUS304/SUS316 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, Made of SUS304/SUS316 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
Bottle Filling part:
Rotary wheel fully made of stainless steel SUS 304/SUS316.
Isobaric pressure filling method.
Filling valves are made of SUS304/SUS316.
Filling valves are reasonably structured with accurate filling.
Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-bottom.
Filler is driven through gears inside the machine frame.
Link-wheels in rinser, filler and capper are transported in star wheel.
Bottle Capping part:
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle
Capping effect is stable and reliable ,Defective rate ≤0.2% .

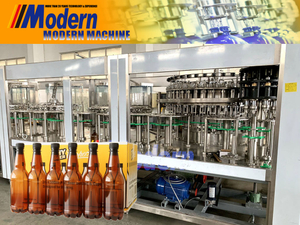

Description of the Glass Bottle Beer Filling Machine: The PXGFD series of 3in1 monobloc rinisng, vacuum filling, capping machine adopts advanced technologies of double evacuations before filling and high pressure hot water injection system after Beer filling.These technologies remarkably reduce oxygen content in bottle beer, improve taste of beer much. They have been widely used in modern glass bottle beer filling machine technology in the world.
Zjgmodern provide a wide range of automatic beer bottle filling machine. Easily find collection of efficient automatic rinser, filler & capper monoblocks. This machine is helpful for bottling a wide range of sparkling & still drink including water, wine, soft drinks & carbonated drinks.
Beer Filling Machine use stainless steel where possible to lessen wear & make them simple to clean. This machine is one of the most cost effective ways of incorporating isobaric filling with a rinser & capper.
The combination of high quality Glass Bottle Beer Filling Machine construction along with close consideration to the requirements of clean in place CIP ensures 3in1 monobloc beer fillers to deliver proficient reliable bottling production , constant CIP sanitisation which are all significant needs when filling beer. These highly advanced technologies amazingly reduce oxygen content in bottled beer, get better taste of beer.
With appropriate change parts Beer Bottle Filling Machine can handle exclusive glass bottle sizes and PET bottles when fixed with possible neck lift assistance.
Just check out the whole list of hi-tech beer filling machines at Zhangjiagang Modern Machinery Co., Ltd!
| Model | PXGFD18186 | PXGFD24248 | PXGFD32328 | PXGFD404010 | PXGFD505012 |
| Capacity (B/H) | 3000-4000 | 5000-6000 | 7000-8000 | 8000-9000 | 9000-11000 |
| Heads of rinsing,filling&capping | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 |
| Suitable bottle height(mm) | 160-340 | ||||
| Suitable bottle diameter(mm) | Φ50-Φ100 | ||||
| Wash water pressure(Mpa) | 0.25-0.3 | ||||
| Filling way | & Pressure equality filling&Twotimes vacuumized | ||||
| Filling temperature(℃ ) | 0-5 | ||||
| Filling pressure(Mpa) | 0.15-0.5 | ||||
| Main power(kw) | 3 | 4 | 7.5 | 11 | |
| Total power(kw) | 3.18 | 4.18 | 7.68 | ||
| Overall dimensions(mm) | 3010×2010×3260 | 3280×2420×3200 | 4430×2880×3200 | 4650×3200×3200 | 4987×3846×3200 |
| Weight(kg) | 3800 | 5000 | 6800 | 8800 | 11000 |
Service
MODERN MACHINERYoffers engineer to assist you in installing your bottling machine. Upon installation of your equipment or line, the engineer stays on-site to watch your new equipment run smoothly and train your operators. Even after our specialist leaves your plant, we are ready to give you timely, courteous service when you need it.
Our engineer offers the following services:
1. Installation of equipment or packaging line at the customer's plant
2. Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
3. Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment's performance
4. Resolve equipment issues
5. Provide on-site training on all assigned procedures
Filling machine machining center
Container loading and shipping
