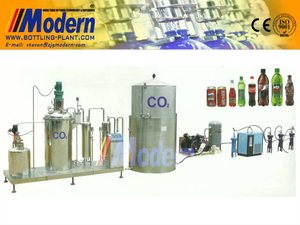

We supply complete solution of carbonated soft drink production line from A to Z, which includs Water treatment system, Chilling system, beverage carbonating system, Automatic carbonated soft drink filling machine, Bottle warming Tunnel, Air dryer, Automatic labeling machine, Automatic bottle packaging machine, Automatic palletizer system and the whole factory conveyor system.

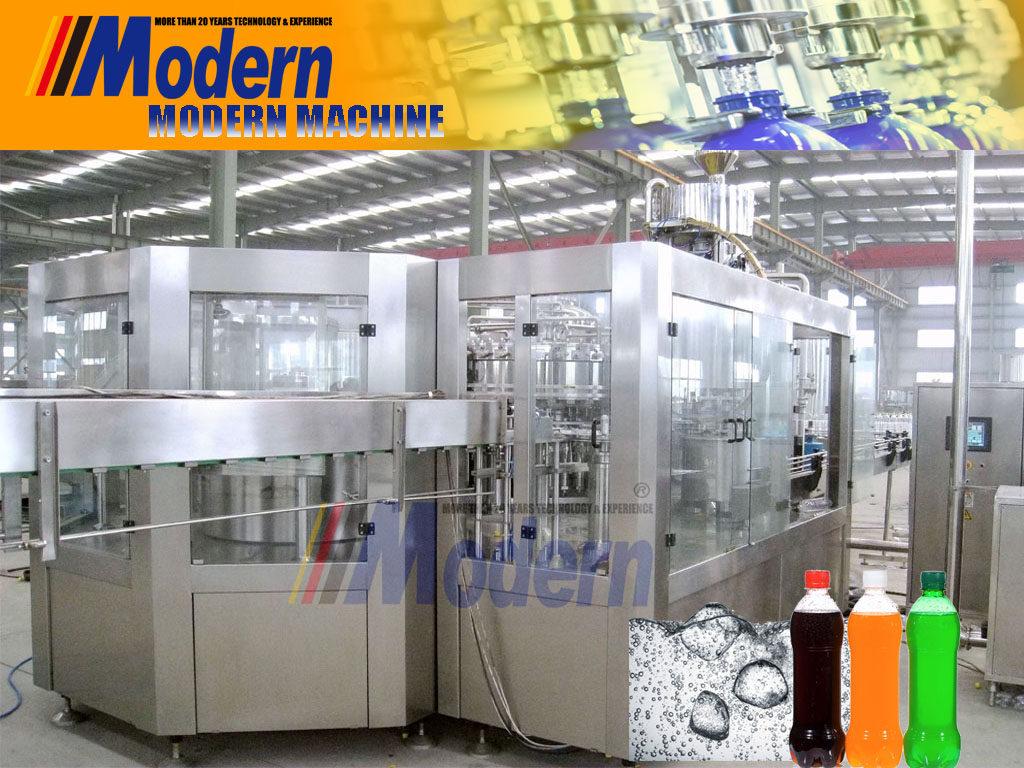

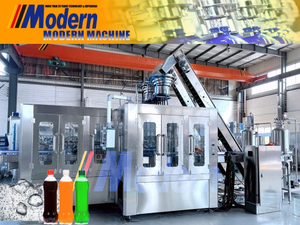

XFGD series soft drink filling machine is composed of rinser, filler and capper, which is special designed for your glass bottle filling. we design the balance pressure filling method with vacuum process and CIP cleaning fuction.
MODERN MACHINERY, with more than 20 years of experience in designing and implementing customized carbonated soft drink production line solutions (CSD filling line), we can help you expand your carbonated drink plant capabilities and flexibility for the market from 2000BPH to 25000BPH based on 200ml-2000ml.
Success in carbonated soft drink production line (CSD production line) requires focus on flexibility and overall efficiency, with cost-effective resource management and branding opportunities that deliver optimal choice across your supply chain. Our unmatched expertise and technical knowledge of carbonated beverage machine helps you achieve more.
Carbonated Soft Drink Bottle Filling Principle
The advantage we provided:
Bottle In-feed washing machine
1) The clamp heads use special design clamp head for the glass bottle
2) The convey chain used stainless steel 304 material for long time use.
Bottle Washing machine
3) The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water
4) The rinser is driven by driving system positioned inside machine frame via gear transmission.
Bottle filling machine
1) Isobaric pressure filling method.
2) Filling valves are made of SUS304.
3) Long-tube filling valves are adopted, with CO2 fully exchanging with air inside glass bottles, to decrease the rinsing of oxygen effectively.
4) High-pressure foam stimulator is equipped to minimize air remaining at the neck.
5) Centralized automatic lubrication system, simple for maintenance.
6) Before capping system, we have jetting system to remove the beer foam on the top of bottle mouth to be sure the Oxygen content less than r0.15 mg O2/l
7) Filling level tolerances : ± 2.0 mm
8) Bottle break rate : max. 0.01% (1:10,000)
Bottle capping machine
1) Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
2 Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
3) The capper is equipped with inlet bottle detection switch.
4) Centrifugal way of cap arranging is adopted to reduce damage of caps.
5) A cap inspecting system is applied to control on-off of cap elevator.
Discharge conveyor
1) Driving motor is frequency inverted to synchronize with the filling line to prevent bottles from falling.
2) Discharge conveyor is equipped with photocell switch to slow down and stop filling line in case of fallen bottles.
| Model | Heads of washing filling sealing | Production capacity (bottle/hour) | Suitable bottle diameter (mm) | Filling temperature (℃ ) | Filler type | Spraying | Filling pressure (MPa) | Motor power (kw) | Overall dimension (LxWxH) (mm) | Weight (kg) |
| XGFD16126 | 16-12-6 | 2000-3000 | Φ=50-100=170 330-1500ml Φ50-Φ110 H=160-340 | 0-5 | Balanced pressure filler | 0.2-0.25 | 0.15-0.35 | 2.2+0.55 +0.12 | 2300x1600x2500 | 2800 |
| XGFD18186 | 18-18-6 | 4000-5000 | 0.15-0.35 | 2.2+0.55 +0.18 | 2600x1920x2550 | 3650 | ||||
| XGFD24248 | 24-24-8 | 5000-6000 | 0.15-0.35 | 3+0.55 +0.18 | 3100x2200x2800 | 4800 | ||||
| XGFD32328 | 32-32-8 | 6000-9000 | 0.2-0.4 | 5.5+0.55 +0.18 | 3850x3000x2850 | 6800 | ||||
| XGFD404010 | 40-40-10 | 10000-13000 | 0.2-0.4 | 7.5 | 4850x3800x2750 | 8650 | ||||
| XGFD505012 | 50-50-12 | 13000-16000 | 0.2-0.4 | 11 | 5750x3550x2750 | 10500 | ||||
| XGFD606015 | 60-60-15 | 17000-20000 | 0.2-0.4 | 15 | 6500x5500x2750 | 12800 |
