| Quantity: | |
|---|---|
We supply complete solution of canning line and packing line from A to Z, which includs Auto can depalletizer, Can rinsing device, 2in1 Can filling and seaming machine, Can wraming tunnel/Beer pasteurization tunnel, Air dryer, Automatic bottle packaging machine, Automatic palletizer system, as well as the complete Water treatment system, Mixing tanks, Water chiller, Beverage carbonator and the whole factory conveyor system.
Description:

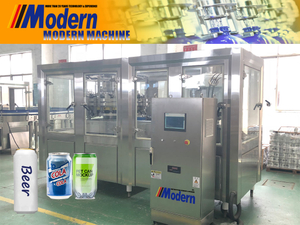

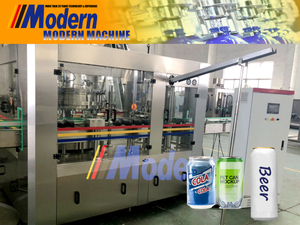

Carbonated Soft Drink / Beer Canning Machine for aluminum can canning seaming 2in1 unit is used to produce aluminum canned beer or carbonated soft drink. It can finish all the process such as beer canning and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency. It’s design combines with the actual situation in our country after the introduction and absorption from foreign developed technology. The family of our counter Isobaric pressure filling valves have a smart design, and they are highly engineered in all single components, which allows a standard construction and modular assembly interchanging parts from the different applications and easy retrofitting even after a long time of operation. Also, the operator intervention is fast and easy in maintenance and troubleshooting.

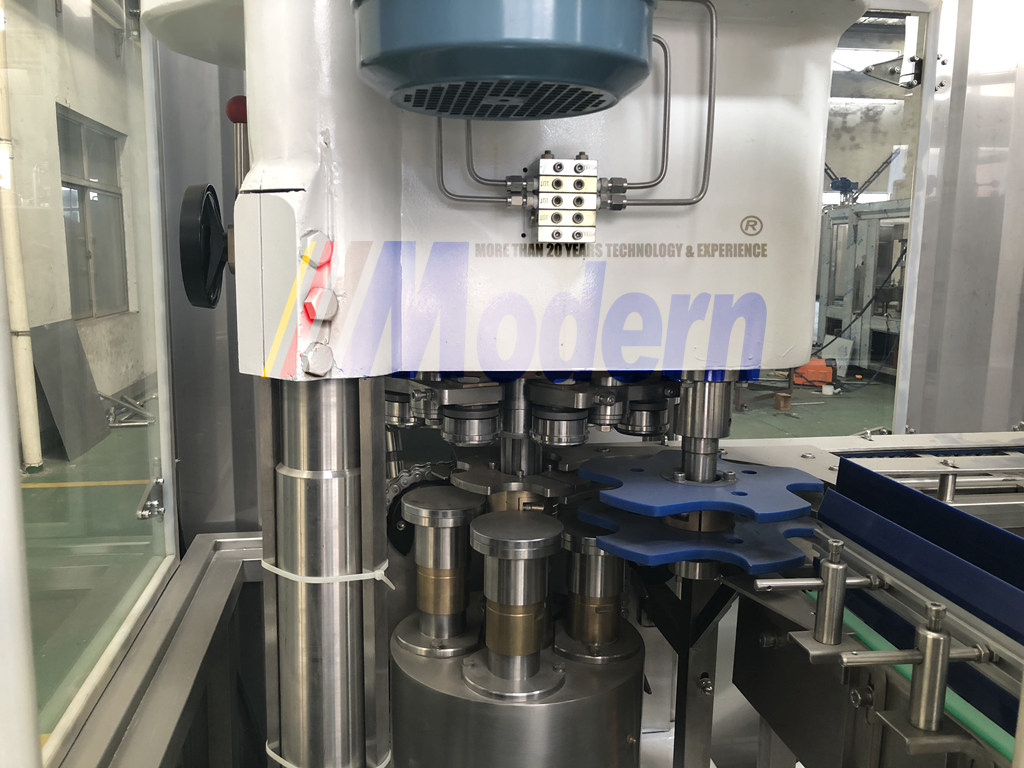

Can filling part Can seaming part
| Model | YGFD12-1 | YGFD18-4 | YGFD24-4 | YGFD30-6 |
| Capacity (can/Hour) | 1500-2500 | 5000-7000 | 7000-9000 | 12000-15000 |
| Suitable can size ( ml ) | 150ml-500ml | |||
| Can size | 200/202/206/209 | |||
| Heads of filling | 12 | 18 | 24 | 30 |
| Heads of sealing | 1 | 4 | 4 | 6 |
| Filling way | Balanced pressure filling | |||
| Filling temperature(℃ ) | 0-5℃ | |||
| Power source specification | AC380V/50HZ | |||
| Power (kw) | 2.2 | 4 | 5.5 | 7.5 |
| Overall dimension(mm) | 2200x1600x2200 | 2500x2000x2350 | 2800x2200x2350 | 3500x2200x2350 |
| Weight(kg) | 2000 | 3200 | 4200 | 5000 |
Service
MODERN MACHINERYoffers engineer to assist you in installing your bottling machine. Upon installation of your equipment or line, the engineer stays on-site to watch your new equipment run smoothly and train your operators. Even after our specialist leaves your plant, we are ready to give you timely, courteous service when you need it.
Our engineer offers the following services:
1. Installation of equipment or packaging line at the customer's plant
2. Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
3. Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment's performance
4. Resolve equipment issues
5. Provide on-site training on all assigned procedures
Filling machine machining center
Container loading and shipping
