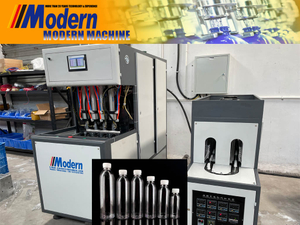

MODERN MACHINERY Automatic PET Water Bottle Blowing Machine is suitable for producing PET plastic containers and bottles in all shapes.
It is widely used to produce the carbonated water bottling machine, mineral water, pesticide bottleand hot fill bottle etc.
Description:
1.This full automatic PET bottle blow molding machine uses automatic perform input and ready bottle output system.
2.This machine adopt with the overall structure of super-standard anti-vibration design, high-speed operation state of the machine will shake down to a minimum.
3. Machine adopts modular assembly method, greatly decrease the local amendments due to technological improvements when the machine is on processing.
4.The structure of machine oven adopt the international most advanced energy-saving technology of infrared radiation heating, temperature control with automatic negative feedback, closed-loop regulation model.
5.Automation controlling item adopts international high-end computer system, heating, collecting and measuring perform temperature with simulation input and output module.
6.Man-machine interface displays current production situation, available for on line switching, parameter modification and production accounting, with automatic alarm, automatic fault detection and diagnose.
7.Storing more than 7 kinds specification for making bottle.
8.Adopt latest international air pneumatic.
9.In order to save air, we choose high pressure blowing exhaust recovery system, which can save energy by 10-15%.
Servo transmission system of bottle blowing machine
High positioning accuracy, fast speed and stability, good reliability. Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement; Adopt high pressure and double crank arm link locking, strong clamping force.
Infrared lamp heating system of bottle blowing machine:
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; Heating lamp, reflector width and height can be adjusted to suit preform heating of different structure, with automatic temperature-removal device to ensure the constant temperature of oven.
Servo clamping and stretching system for bottle molding
Blow the bottles according to the designed bottle molds,it adopts servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.There are two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
| Model | Item | CP-2000 | CP--4000 | CP-6000 | C-9000 | CP-12000 |
| Productivity | Depend on bottle design | 1800-2200PCS/H | 3500-4200PCS/H | 5500-6300PCS/H | 8000-9200PCS/H | 11000-12200PCS/H |
| Product type | Volume | 0.1-2.0L | 0.1-2.0L | 0.1-2.0L | 0.1-0.75L | 0.1-0.75L |
| Body diameter | ≤100mm | ≤100mm | ≤100mm | ≤100mm | ≤100mm | |
| Height | ≤310mm | ≤310mm | ≤330mm | ≤330mm | ≤330mm | |
| Neck diameter | ≤38mm | ≤38mm | ≤38mm | ≤38mm | ≤38mm | |
| Mold | Cavity | 2 | 4 | 6 | 6 | 9 |
| Mold thickness | 240mm | 240mm | 240mm | 240mm | 240mm | |
| Mold volume | 260*240*370mm | 510*240*360mm | 640*240*360mm | 640*240*360mm | 840*240*360mm | |
| Main machine power | Electrical source power | 380V/220V 50/60Hz | 380V/220V 50/60Hz | 380V/220V 50/60Hz | 380V/220V 560/60Hz | 380V/220V 560/60Hz |
| 3Phase | 3Phase | 3Phase | 3Phase | 3Phase | ||
| Rated power | 25kw | 49kw | 73kw | 97kw | 127kw | |
| Really use power | 6.5kw | 13kw | 25kw | 32kw | 52kw | |
| Air system | HP air compressor | 1.6m⊃3;/min3.0MPa | 3.0m⊃3;/min3.0MPa | 6.0m⊃3;/min3.0MPa | 6.0m⊃3;/min3.0MPa | 8.0m⊃3;/min3.0MPa |
| LP air compressor | 1.0m⊃3;/min1.0MPa | 1.6m⊃3;/min1.0MPa | 2.0m⊃3;/min1.0MPa | 2.0m⊃3;/min1.0MPa | 2.0m⊃3;/min1.0MPa | |
| Air tank | 0.6m⊃3;3.0MPa | 0.6m⊃3;3.0MPa | 1.0m⊃3;3.0MPa | 1.0m⊃3;3.0MPa | 1.0m⊃3;3.0MPa | |
| Air dryer | 1.0m⊃3;/min3.0MPa | 2.0m⊃3;/min3.0MPa | 6.0m⊃3;/min3.0MPa | 6.0m⊃3;/min3.0MPa | 8.0m⊃3;/min3.0MPa | |
| Cooling water | Water Chiller | 3HP | 3HP | 5HP | 5HP | 8HP |
| Machine | Size(L*W*H) | 1900*1280*1930mm | 1900*1860*1930mm | 4100*1400*1800mm | 4100*2200*1800mm | 4700*2600*1800mm |
| Weight | 2000kg | 3600kg | 4200kg | 4800kg | 5700kg | |
| Preform unscrambler | Size(L*W*H) | 2000*950*2480mm | 2000*950*2480mm | 2000*950*2480mm | 2000*950*2480mm | 2000*950*2480mm |
| Weight | 500kg | 500kg | 500kg | 500kg | 500kg |
Service
MODERN MACHINERYoffers engineer to assist you in installing your bottling machine. Upon installation of your equipment or line, the engineer stays on-site to watch your new equipment run smoothly and train your operators. Even after our specialist leaves your plant, we are ready to give you timely, courteous service when you need it.
Our engineer offers the following services:
1. Installation of equipment or packaging line at the customer's plant
2. Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
3. Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment's performance
4. Resolve equipment issues
5. Provide on-site training on all assigned procedures
Filling machine machining center
Container loading and shipping
MODERN MACHINERY Automatic PET Water Bottle Blowing Machine is suitable for producing PET plastic containers and bottles in all shapes.
It is widely used to produce the carbonated water bottling machine, mineral water, pesticide bottleand hot fill bottle etc.
Description:
1.This full automatic PET bottle blow molding machine uses automatic perform input and ready bottle output system.
2.This machine adopt with the overall structure of super-standard anti-vibration design, high-speed operation state of the machine will shake down to a minimum.
3. Machine adopts modular assembly method, greatly decrease the local amendments due to technological improvements when the machine is on processing.
4.The structure of machine oven adopt the international most advanced energy-saving technology of infrared radiation heating, temperature control with automatic negative feedback, closed-loop regulation model.
5.Automation controlling item adopts international high-end computer system, heating, collecting and measuring perform temperature with simulation input and output module.
6.Man-machine interface displays current production situation, available for on line switching, parameter modification and production accounting, with automatic alarm, automatic fault detection and diagnose.
7.Storing more than 7 kinds specification for making bottle.
8.Adopt latest international air pneumatic.
9.In order to save air, we choose high pressure blowing exhaust recovery system, which can save energy by 10-15%.
Servo transmission system of bottle blowing machine
High positioning accuracy, fast speed and stability, good reliability. Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement; Adopt high pressure and double crank arm link locking, strong clamping force.
Infrared lamp heating system of bottle blowing machine:
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; Heating lamp, reflector width and height can be adjusted to suit preform heating of different structure, with automatic temperature-removal device to ensure the constant temperature of oven.
Servo clamping and stretching system for bottle molding
Blow the bottles according to the designed bottle molds,it adopts servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.There are two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
| Model | Item | CP-2000 | CP--4000 | CP-6000 | C-9000 | CP-12000 |
| Productivity | Depend on bottle design | 1800-2200PCS/H | 3500-4200PCS/H | 5500-6300PCS/H | 8000-9200PCS/H | 11000-12200PCS/H |
| Product type | Volume | 0.1-2.0L | 0.1-2.0L | 0.1-2.0L | 0.1-0.75L | 0.1-0.75L |
| Body diameter | ≤100mm | ≤100mm | ≤100mm | ≤100mm | ≤100mm | |
| Height | ≤310mm | ≤310mm | ≤330mm | ≤330mm | ≤330mm | |
| Neck diameter | ≤38mm | ≤38mm | ≤38mm | ≤38mm | ≤38mm | |
| Mold | Cavity | 2 | 4 | 6 | 6 | 9 |
| Mold thickness | 240mm | 240mm | 240mm | 240mm | 240mm | |
| Mold volume | 260*240*370mm | 510*240*360mm | 640*240*360mm | 640*240*360mm | 840*240*360mm | |
| Main machine power | Electrical source power | 380V/220V 50/60Hz | 380V/220V 50/60Hz | 380V/220V 50/60Hz | 380V/220V 560/60Hz | 380V/220V 560/60Hz |
| 3Phase | 3Phase | 3Phase | 3Phase | 3Phase | ||
| Rated power | 25kw | 49kw | 73kw | 97kw | 127kw | |
| Really use power | 6.5kw | 13kw | 25kw | 32kw | 52kw | |
| Air system | HP air compressor | 1.6m⊃3;/min3.0MPa | 3.0m⊃3;/min3.0MPa | 6.0m⊃3;/min3.0MPa | 6.0m⊃3;/min3.0MPa | 8.0m⊃3;/min3.0MPa |
| LP air compressor | 1.0m⊃3;/min1.0MPa | 1.6m⊃3;/min1.0MPa | 2.0m⊃3;/min1.0MPa | 2.0m⊃3;/min1.0MPa | 2.0m⊃3;/min1.0MPa | |
| Air tank | 0.6m⊃3;3.0MPa | 0.6m⊃3;3.0MPa | 1.0m⊃3;3.0MPa | 1.0m⊃3;3.0MPa | 1.0m⊃3;3.0MPa | |
| Air dryer | 1.0m⊃3;/min3.0MPa | 2.0m⊃3;/min3.0MPa | 6.0m⊃3;/min3.0MPa | 6.0m⊃3;/min3.0MPa | 8.0m⊃3;/min3.0MPa | |
| Cooling water | Water Chiller | 3HP | 3HP | 5HP | 5HP | 8HP |
| Machine | Size(L*W*H) | 1900*1280*1930mm | 1900*1860*1930mm | 4100*1400*1800mm | 4100*2200*1800mm | 4700*2600*1800mm |
| Weight | 2000kg | 3600kg | 4200kg | 4800kg | 5700kg | |
| Preform unscrambler | Size(L*W*H) | 2000*950*2480mm | 2000*950*2480mm | 2000*950*2480mm | 2000*950*2480mm | 2000*950*2480mm |
| Weight | 500kg | 500kg | 500kg | 500kg | 500kg |
Service
MODERN MACHINERYoffers engineer to assist you in installing your bottling machine. Upon installation of your equipment or line, the engineer stays on-site to watch your new equipment run smoothly and train your operators. Even after our specialist leaves your plant, we are ready to give you timely, courteous service when you need it.
Our engineer offers the following services:
1. Installation of equipment or packaging line at the customer's plant
2. Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
3. Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment's performance
4. Resolve equipment issues
5. Provide on-site training on all assigned procedures
Filling machine machining center
Container loading and shipping
