We supply complete solution of canning and packing line from A to Z, which includs Auto can depalletizer, Can rinsing device, 2in1 Can filling and seaming machine, Can wraming tunnel/Beer pasteurization tunnel, Air dryer, Automatic bottle packaging machine, Automatic palletizer system, as well as the complete Water treatment system, Mixing tanks, Water chiller, Beverage carbonator and the whole factory conveyor system.

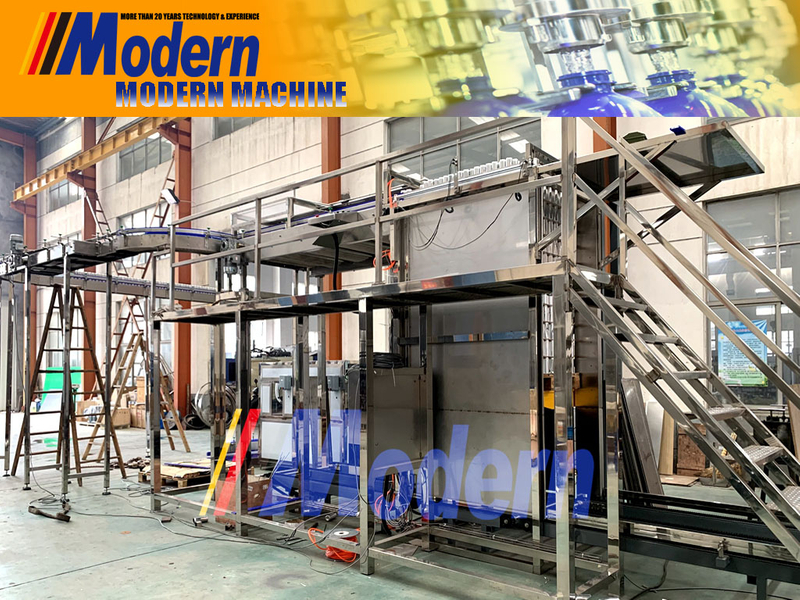

Summary: It is applicable to automatically unload empty cans. It lifts the empty cans that are piled on the plank one floor by one floor and pushes to the net conveyer. It can match different kinds of washer .It is the perfect machine for large and medium canning plant.
Principle: Over by the forklift to stack pallets of empty cans, pallets placed on the conveyor, and then the conveyor and transported to the host platform pallet movements. Pallet positioning platform is empty after unloading pallets up to the tank height, when unload the empty cans, the empty pallets put down on the conveyor. All action of the rise and the decline are controlled by stem of self-locking device, and separately adjust the speed of rise and the decline to meet the operational needs. Unloading device is the use of empty air cylinder and hydraulic motor driven devices to push the whole empty cans on the net conveyor, and then return to ready position and continue to be launched next level. All actions by the photoelectric switch control positioning and movement to choose a row or a single tank unloading a revolving basis. Empty space after unloading let conveyor by empty space pallet transfered to Taiwan vertebral plot, and then followed to a certain height of the stack,and then the pallets out of forklift. It into pile direction, the direction of the tank, console users location can be flexible according to changes, but the user plane location map should be provided.
| Model | XD-300 |
| Production capacity(can/min) | 200-300 can/min |
| Power | 2.6KW |
| Weight | 2500kg |
| Overall dimension | 6200×3500×3500mm |
Service
MODERN MACHINERYoffers engineer to assist you in installing your bottling machine. Upon installation of your equipment or line, the engineer stays on-site to watch your new equipment run smoothly and train your operators. Even after our specialist leaves your plant, we are ready to give you timely, courteous service when you need it.
Our engineer offers the following services:
1. Installation of equipment or packaging line at the customer's plant
2. Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
3. Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment's performance
4. Resolve equipment issues
5. Provide on-site training on all assigned procedures

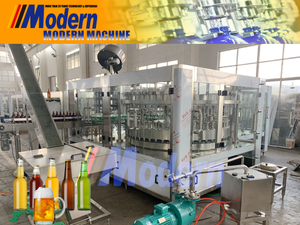

Filling machine machining center
Container loading and shipping
We supply complete solution of canning and packing line from A to Z, which includs Auto can depalletizer, Can rinsing device, 2in1 Can filling and seaming machine, Can wraming tunnel/Beer pasteurization tunnel, Air dryer, Automatic bottle packaging machine, Automatic palletizer system, as well as the complete Water treatment system, Mixing tanks, Water chiller, Beverage carbonator and the whole factory conveyor system.
Summary: It is applicable to automatically unload empty cans. It lifts the empty cans that are piled on the plank one floor by one floor and pushes to the net conveyer. It can match different kinds of washer .It is the perfect machine for large and medium canning plant.
Principle: Over by the forklift to stack pallets of empty cans, pallets placed on the conveyor, and then the conveyor and transported to the host platform pallet movements. Pallet positioning platform is empty after unloading pallets up to the tank height, when unload the empty cans, the empty pallets put down on the conveyor. All action of the rise and the decline are controlled by stem of self-locking device, and separately adjust the speed of rise and the decline to meet the operational needs. Unloading device is the use of empty air cylinder and hydraulic motor driven devices to push the whole empty cans on the net conveyor, and then return to ready position and continue to be launched next level. All actions by the photoelectric switch control positioning and movement to choose a row or a single tank unloading a revolving basis. Empty space after unloading let conveyor by empty space pallet transfered to Taiwan vertebral plot, and then followed to a certain height of the stack,and then the pallets out of forklift. It into pile direction, the direction of the tank, console users location can be flexible according to changes, but the user plane location map should be provided.
| Model | XD-300 |
| Production capacity(can/min) | 200-300 can/min |
| Power | 2.6KW |
| Weight | 2500kg |
| Overall dimension | 6200×3500×3500mm |
Service
MODERN MACHINERYoffers engineer to assist you in installing your bottling machine. Upon installation of your equipment or line, the engineer stays on-site to watch your new equipment run smoothly and train your operators. Even after our specialist leaves your plant, we are ready to give you timely, courteous service when you need it.
Our engineer offers the following services:
1. Installation of equipment or packaging line at the customer's plant
2. Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
3. Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment's performance
4. Resolve equipment issues
5. Provide on-site training on all assigned procedures
Filling machine machining center
Container loading and shipping
