B-TB
Modern

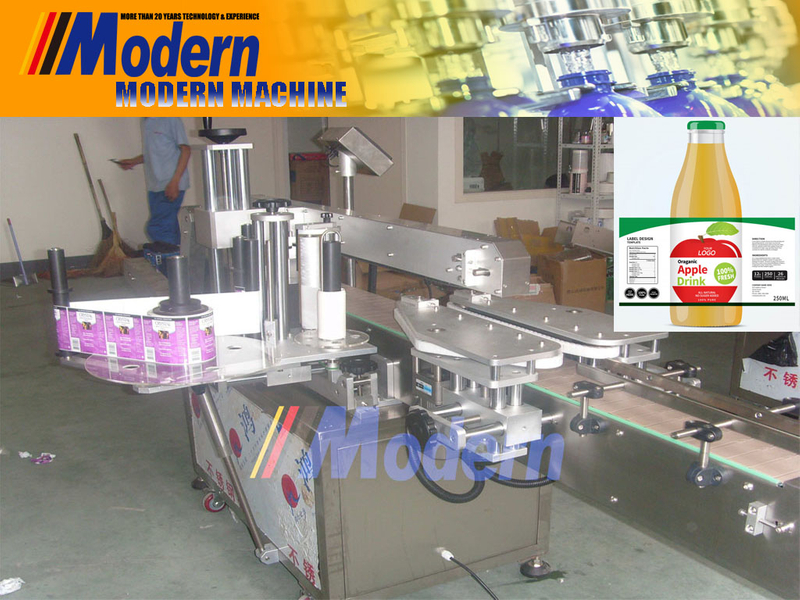

1. Automatic Sticker Labeling Machine is used in medicine, food, beverage and other industries in the cylindrical object or the week half cycle of the automatic labeling requirements
2. Intelligent control, automatic photoelectric tracking, have any label, no standard automatic correction and label automatic detection function, prevent leakage and labels to waste
3. High stability, Panasonic PLC and stepping motor and advanced electronic control system of sensor.
4. Easy adjustment, labeling speed, transmission speed, bottle can realize stepless speed regulation, according to the need to adjust
5. Main material is made of stainless steel equipment and advanced aluminum alloy manufacturing, comply with GMP requirement
| Model: | TB100(A) |
| Inner diameter of label: | Φ76mm |
| Max outer diameter of label: | ≤Φ300mm |
| Label width: | 10-150mm |
| Label length: | 20-250mm |
| Bottle diameter: | 20-150mm |
| Bottle high: | 30-250mm |
| Label precision: | ±1mm |
| Production capacity: | 30-80 bottle/min (according to bottle and label size) |
| Power supply: | 220V-50Hz/60Hz (according to the customer’s requirement) |
| Power: | 750W Weight: 500Kg |
| Dimension: | 24400mm×1500mm×1400mm(L×W×H) |
1. Automatic Sticker Labeling Machine is used in medicine, food, beverage and other industries in the cylindrical object or the week half cycle of the automatic labeling requirements
2. Intelligent control, automatic photoelectric tracking, have any label, no standard automatic correction and label automatic detection function, prevent leakage and labels to waste
3. High stability, Panasonic PLC and stepping motor and advanced electronic control system of sensor.
4. Easy adjustment, labeling speed, transmission speed, bottle can realize stepless speed regulation, according to the need to adjust
5. Main material is made of stainless steel equipment and advanced aluminum alloy manufacturing, comply with GMP requirement
| Model: | TB100(A) |
| Inner diameter of label: | Φ76mm |
| Max outer diameter of label: | ≤Φ300mm |
| Label width: | 10-150mm |
| Label length: | 20-250mm |
| Bottle diameter: | 20-150mm |
| Bottle high: | 30-250mm |
| Label precision: | ±1mm |
| Production capacity: | 30-80 bottle/min (according to bottle and label size) |
| Power supply: | 220V-50Hz/60Hz (according to the customer’s requirement) |
| Power: | 750W Weight: 500Kg |
| Dimension: | 24400mm×1500mm×1400mm(L×W×H) |
