5L - 10L Bottle Water Filling Machinery

Availability:
Quantity:
  • XGF

  • Modern


Full Automatic 5L-10L Bottle Water Filling Machinery Solution

We supply complete solution of Bottle Water Filling Machinery from A to Z, which includs Water treatment system, Automatic bottle rinsing filling capping machine, Air dryer, Automatic labeling machine, Automatic bottle packaging machine, Automatic palletizer system and the whole factory conveyor system.

Water Filling Machinery Layout

MODERN - With 20+ years of experience in designing and implementing customized complete 3-10L water filling machinery solutions for pure water / pure water, spring water, we can help you reach your production targets. Over the years, we have significantly reduce production costs while retaining their durability and expanding design opportunities.


3in1 Bottle Filling Machinery

Rotary style water filling machinery is designed especially for 3 liters - 10 liters bottle, including the function of bottle washing, water filling, bottle capping functions.

This bottle filling machinery working process is controlled by PLC program with high automatically, and has the safe device for interlock.

The whole machine is made of stainless steel SUS304 or SUS316, meet the demands of food hygiene, with the feature of reasonable structure, easy in operation, high filling precision.

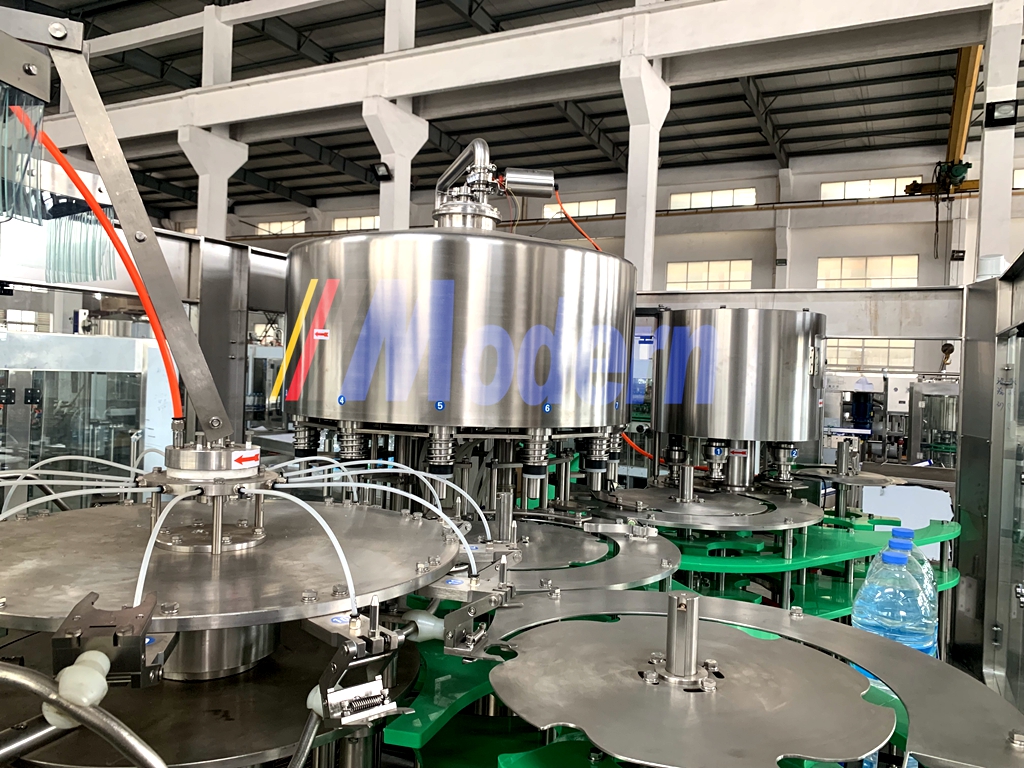

5-10L Bottle Water Filling Machinery



Features:

This 3in1 bottle filling machinert is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: gravity filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.


And water filling machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.


Technical Parameter:


5-10L Bottle Water Filling Machinery (2)



 Bottle Rinsing System:

 - Into bottle way is air conveyor direct connection with bottle dial.
 - All 304/316 stainless steel rinse heads, water spray style inject design,  more save water consumption and more clean.
 - 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
 - 304/316 stainless steel washing pump make the machine more durable







Bottle Filling System: 5-10L Bottle Water Filling Machinery (3)

- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing








5-10L Bottle Water Filling Machinery (4)


Bottle Capping System:

 - Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
 - All 304/316 stainless steel construction

 - No bottle no capping

 - Automatic stop when lack of bottle
 - Capping effect is stable and reliable, Defective rate ≤0.2%.







Technical Parameter:

Model

XGF8-8-3

CGF12-12-4

Capacity

1000BPH

2000BPH

Applicable bottle

Plastic bottle 5L-10L

Plastic screw cap

Applicable filling content

Mineral water, wine, non-carbonated water

Washing station

8

12

Filling nozzle

8

12

Capping head

3

4

Main motor power

3.5kw

5.5kw

Water pump power

0.37kw

Dimension (mm)

2400*2100*2450

2800*2250*2450

Weight (kg)

3000

4000

Service
MODERN MACHINERYoffers engineer to assist you in installing your bottling machine. Upon installation of your equipment or line, the engineer stays on-site to watch your new equipment run smoothly and train your operators. Even after our specialist leaves your plant, we are ready to give you timely, courteous service when you need it.
Our engineer offers the following services:

1. Installation of equipment or packaging line at the customer's plant
2. Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
3. Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment's performance
4. Resolve equipment issues
5. Provide on-site training on all assigned procedures

5-10L Bottle Water Filling Machinery installation


Filling machine machining center

Water Filling Machinery manufacturer


Container loading and shipping

Water Filling Machinery manufacturer Container loading and shipping
