QGF
Modern
We supply complete solution of 5 gallon water filling line from A to Z, which includs Water treatment system, Automatic cap pullout device, Automatic bottle washing and brushing machine, Automatic 5 gallon filling machine, Automatic bottle neck film sleeving machine, Automatic bottle bagging machine, Automatic palletizer system and the whole factory conveyor system.
Complete 5 Gallon Water Production Line Flow Chart :
1.Cap Pullout Device ; 2.Bottle brushing machine; 3. Automatic 5 Gallon Filling Machine ; 4.Cap elevator; 5.Code sprayer; 6. Light Inspection ; 7.Bottlle Neck Film Sleeving Machine; 8. Film Shrinking tunnel; 9. Bottle bagging machine ; 10. Automatic palletizer

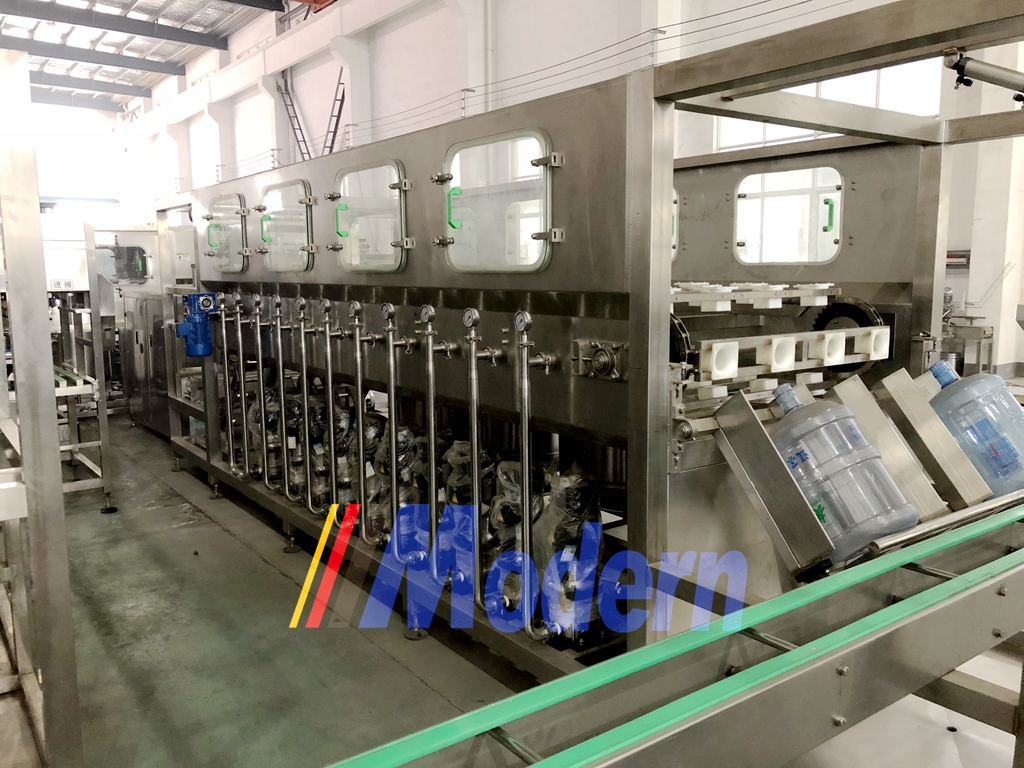

This 5 Gallon water filling machine specially produces 5 gallons water bottle, whose types(b/h)are: 100 type, 200 type, 300 type, 450 type, 600 type, 900 type, 1200 type and 2000 type. This machine integrates bottle washer, filler and sealer into one unit, in order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching are used in bottle washer, Washing solution can be used circularly.
The 5 Gallon filling machine sealer can seal bottle caps automatically. This line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy, also this 5 gallon bottle filling machine can automatically carry out bottle feeding washing, sterilizing, filling, capping, counting and products discharging. It is a new kind of barrel water auto-producing line, which integrates mechanism, electricity and pneumatic technologies together.This 5 gallon water filling line is also can be used for 3 gallon water filling.
| Model | Filling heads | Volume (L) | Barrel size (mm) | Capacity (B/n) | Gas pressure (mpa) | Gas consumption (m3/min) | Motor power (kw) | Rated voltage (V) | Overall dimension (LxWxH)(mm) | Weight (kg) |
| QGF-100 | 1 | 18.9 | Φ270×490 | 100-120 | 0.4-0.6 | 0.37 | 1.75 | 380V/50Hz | 3790x650x1550 | 约 800 |
| QGF-300 | 2 | 18.9 | Φ270×490 | 200-240 | 0.4-0.6 | 0.6 | 3.22 | 380V/50Hz | 3550x800x1800 2800x1100x1800 | 2800 |
| QGF-450 | 3 | 18.9 | Φ270×490 | 300-400 | 0.6 | 0.6 | 4.8 | 380V/50Hz | 3550x1200x1800 3800x1100x1800 | 4000 |
| QGF-600 | 4 | 18.9 | Φ270×490 | 600 | 0.6 | 1.2 | 8.5 | 380V/50Hz | 3650x1500x1800 3800x1100x1800 | 5500 |
| QGF-900 | 8 | 18.9 | Φ270×490 | 900 | 0.6 | 2.2 | 8.5 | 380V/50Hz | 2200x1860x2700 | 7500 |
| QGF-1200 | 12 | 18.9 | Φ270×490 | 1200 | 0.6 | 3 | 8.5 | 380V/50Hz | 2560x2350x2750 | 9500 |
| QGF-2000 | 16 | 18.9 | Φ270×490 | 2000 | 0.6 | 4.5 | 8.5 | 380V/50Hz | 3100x2800x2750 | 11800 |
Service
MODERN MACHINERYoffers engineer to assist you in installing your bottling machine. Upon installation of your equipment or line, the engineer stays on-site to watch your new equipment run smoothly and train your operators. Even after our specialist leaves your plant, we are ready to give you timely, courteous service when you need it.
Our engineer offers the following services:
1. Installation of equipment or packaging line at the customer's plant
2. Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
3. Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment's performance
4. Resolve equipment issues
5. Provide on-site training on all assigned procedures
Filling machine machining center
Container loading and shipping
