YGFD
Modern
We supply complete solution of canning and packing line from A to Z, which includs Auto can depalletizer, Can rinsing device, 2in1 Can filling and seaming machine, Can wraming tunnel/Beer pasteurization tunnel, Air dryer, Automatic bottle packaging machine, Automatic palletizer system, as well as the complete Water treatment system, Mixing tanks, Water chiller, Beverage carbonator and the whole factory conveyor system.

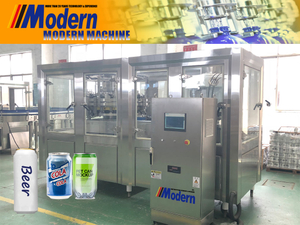

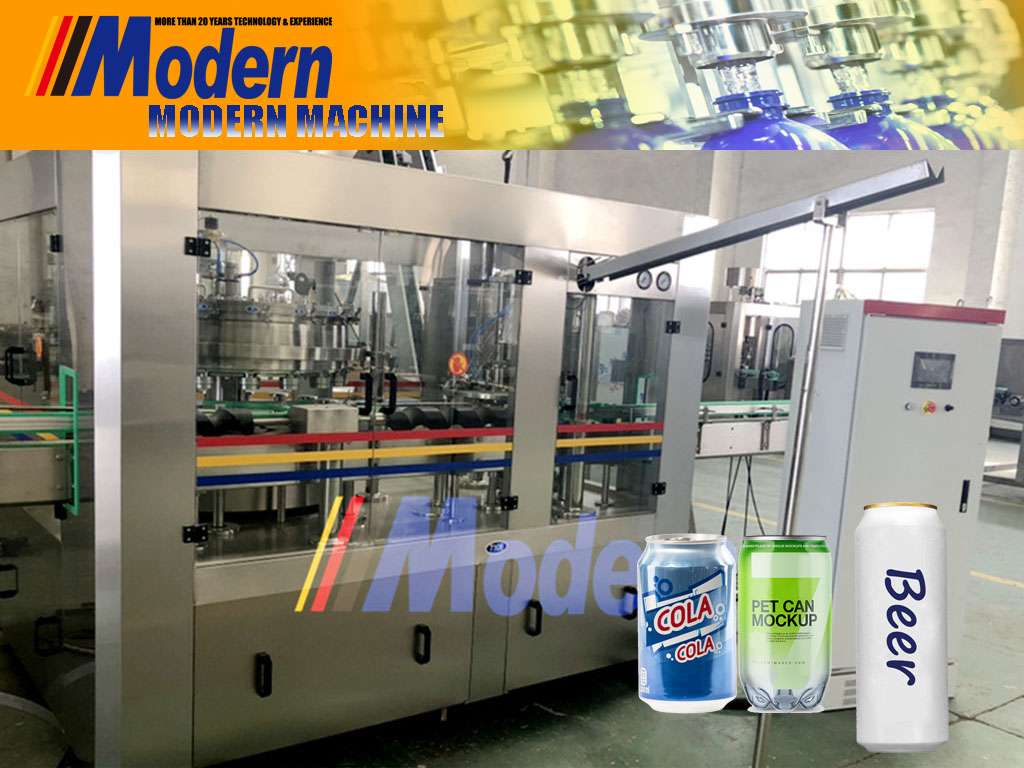

YGFD series of 2 in 1 monobloc Can Filling And Seaming Machine, whose technology was introduced from SWEDEN, is specially applicable for aluminum can or PET can balanced filling and seaming for carbonated drink like cola and beer. Capacity of this canning machine is from 2000 to 15000 can per hour, based on 330ml can.
Can is pushed into can holding platform one by one by feeding screw and star-wheel. Centering cup of filling valve will fall to can; the distance between filling valves and cans is sealed by springiness plastic ring. The movement of centering cup is generated by plastic idler wheel along curvilinear motion. The liquid level is stable and the oxygen content is decreased. Through a few simple adjustments, it could handle different cans. The special structure sealing roller could be adjusted according to can’s size. After filling, valve will be closed, air is discharged, and centering cup will rise from the can. Filled can will be sent to conveyor chain, then to capper. Capper will take cap, turn over the edge of can and turn the edge to finish the sealing action by the control of cam. After that can is transferred to conveying system.
As the can is easy to get deformed, soft treatment is needed in the transferring process. The conveying system regulates the transferring speed according to the each machine’s working condition to assure no can falling or crashing occurs.
Can filling part Can seaming part
| Model | YGFD12-1 | YGFD18-4 | YGFD24-6 | YGFD30-6 |
| Capacity (can/Hour) | 1500-3000 | 5000-7000 | 7000-9000 | 10000-12000 |
| Suitable can size ( ml ) | 150ml-500ml | |||
| Can size | 200/202/206/209 | |||
| Heads of filling | 12 | 18 | 24 | 30 |
| Heads of sealing | 1 | 4 | 6 | 6 |
| Filling way | Balanced pressure filling | |||
| Filling temperature(℃ ) | 0-5℃ | |||
| Power source specification | AC380V/50HZ | |||
| Power (kw) | 2.2 | 4 | 5.5 | 7.5 |
| Overall dimension(mm) | 2200x1600x2200 | 2500x2000x2350 | 2800x2200x2350 | 3500x2200x2350 |
| Weight(kg) | 2000 | 3200 | 4200 | 5000 |
Service
MODERN MACHINERYoffers engineer to assist you in installing your bottling machine. Upon installation of your equipment or line, the engineer stays on-site to watch your new equipment run smoothly and train your operators. Even after our specialist leaves your plant, we are ready to give you timely, courteous service when you need it.
Our engineer offers the following services:
1. Installation of equipment or packaging line at the customer's plant
2. Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
3. Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment's performance
4. Resolve equipment issues
5. Provide on-site training on all assigned procedures
Filling machine machining center
Container loading and shipping
