24000BPH Rotary Type OPP Hot Glue Bottle Labeler
Labeling PET bottles, especially for soft drinks and water, our rotary type OPP hot glue bottle labeler is designed for labeling round bottles using roll-fed OPP labels. This design is suitable for output 200bpm - 450 bpm.
Our MODERN MACHINERY rotary type OPP hot glue bottle labeler applies to the front, shoulder, neck ring and tamper seals onto widely different bottle shapes. MODERN MACHINERY designs are characterized by easy operation and simple changeover.
The success of roll-fed technology lies partly in the plastic label, which has physical and practical qualities that make it's very attractive to consumers and beneficial for beverages producers. Furthermore, they are able to meet a fast-growing market trend that calls for efficient, low power consumption, high-speed machines able to handle lightweight bottles with extremely thin labels.
MODERN MACHINERY OPP hot glue bottle labeler delivers the flexibility needed to match all your needs.

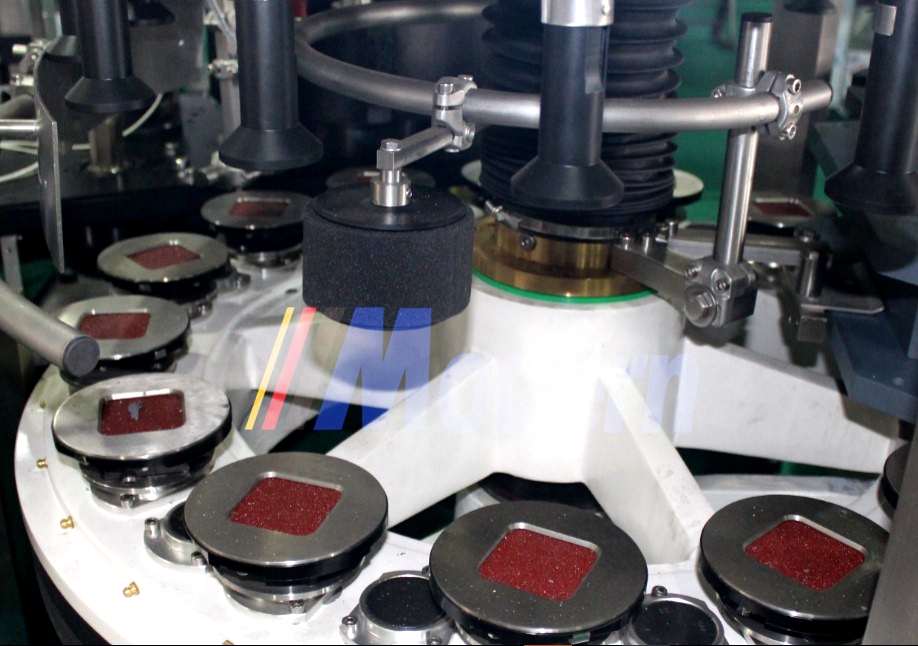

Swivel head
Our OPP hot glue labeler uses one main motor to control the transmission of all the fuselage, which can keep running synchronously and efficiently.
The bottle is stable and reliable in and out of the bottle. Adopt the mechanical self - locating method to ensure to label the labels in a designated position in the bottle, the label left and right position error control positive and negative 1mm only

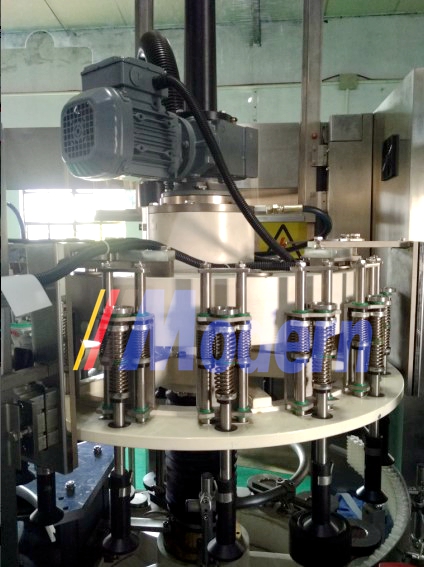

Integrated glue box
Integrated glue box does not require maintenance.
The traditional gear glue pump is replaced by the new motor-free glue supply unit. The optimized structure reduces the maintenance cost. Integrated glue supplying system is not equipped with glue supply pipes. The compact structure reduces the heat dissipation area and the operation cost.

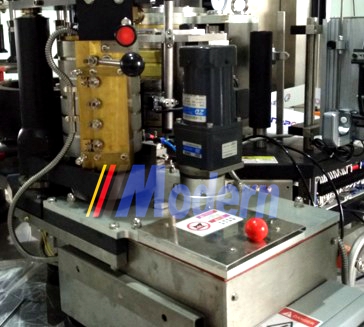

Cutting knife
Cutting knife is durable and with longer life. In addition, the cutter at high-speed operation, easy to fever, reduces life span. We adopt the constant temperature cooling function so that the cutter can operate at high speed at no fever, extend the service life. Ensure that the labeling failure rate is below 1/10,000.
Parameter
model | RTB-18 |
Number of rotary station | 18 |
machine size | 2500L*3600W*2000H(mm) |
weight | 4.5T |
speed of labeling | 3000BPH-26000BPH |
power | AC 3ψ380V50Hz |
rater power | 13KW |
percent of pass | ≥99.5 |
accuracy of labeling | ±1mm |
diameter of bottle | 35-90mm |
material of bottle | Glass, Metal, Plastic |
shape | Round |
Label material | OPP,BOPP,PAPER |
Label thickness | 0.035-0.04mm |
Label height | 40mm-140mm |
inside diameter of paper tube | 6inch |
power consumption of air source | 0.5Mpa |
operation | Automatically |
