20000BPH Mineral Water Bottling Machine

MODERN MACHINERY water bottling machine is able to fill your good water with the utmost precision and efficiency while handling the products smoothly. Our XGF series bottling machine can handle capacity 2000-30000BPH from 200-2000ml. It's mainly used for PET bottle washing filing and capping for non-gas liquid, such as mineral water, still water.
Availability:
Quantity:
  • XGF
  • Modern

Full Automatic Mineral Water Bottling Plant

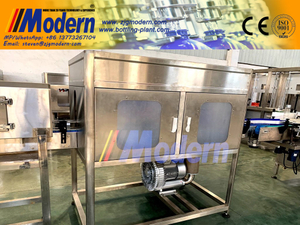

We supply complete solution of water bottle filling line from A to Z, which includs Water treatment system, Automatic bottling machine (water filling machine), Air dryer, Automatic labeling machine, Automatic bottle packaging machine, Automatic palletizer system and the whole factory conveyor system.

Water Bottling Plant Factory Layout

Water Bottling Machine

Modern brand water bottling machine collects washing, filling and capping together.It is mainly suitable for washing filling and capping round or square polyester bottles.It is researched and developed on the base of importing, assimilating and absorbing the advanced technology of Germany. Finished bottled water driven by the transmission motor. It is high automation, compact structure, beautiful appearance, convenient and simple operation, safe and reliable, continuous stable production and others. It is mainly used for washing, filing, and capping non-gas liquid, such as mineral water, pure water. The whole water bottling plant consists of water treatment system, bottle blower, bottle unscrambler, air conveyer, water bottling machine, labeling machine, and bottle packing machine. Besides, our bottling machine is able to meet different production requirements.


The prime features associated with water bottling machine are robust construction, low maintenance cost and simple to clean properties, these industrial RO systems are largely approved in the market. Modern brand water bottling machine can be purchased to obtain great benefits.


We, MODERN MACHINERY, one more than 20 years bottle filling machine manufacturer in China. Our water filling machine allow you to express your creativity through our flexibility! Nothing is impossible, from different shapes bottle rinsing filling to capping, thanks to our XGF series options:

·       With ranges of different model water filling machine from 2000 to 30000 bottles per hour.

·       Suitable for plastic bottle (PET bottle) or glass bottle 200ml-2000ml.


Water bottling machine


Water bottling machine (1)


Water Bottling Principle

Water Bottling Principle

bottling machine (3)

Bottle Rinsing Part:

The rotary wheel is a fully SUS304 stainless steel welded structure.

The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.

The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.

All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.

The rinser is driven by driving system positioned inside machine frame via gear transmission.

bottling machine (2)

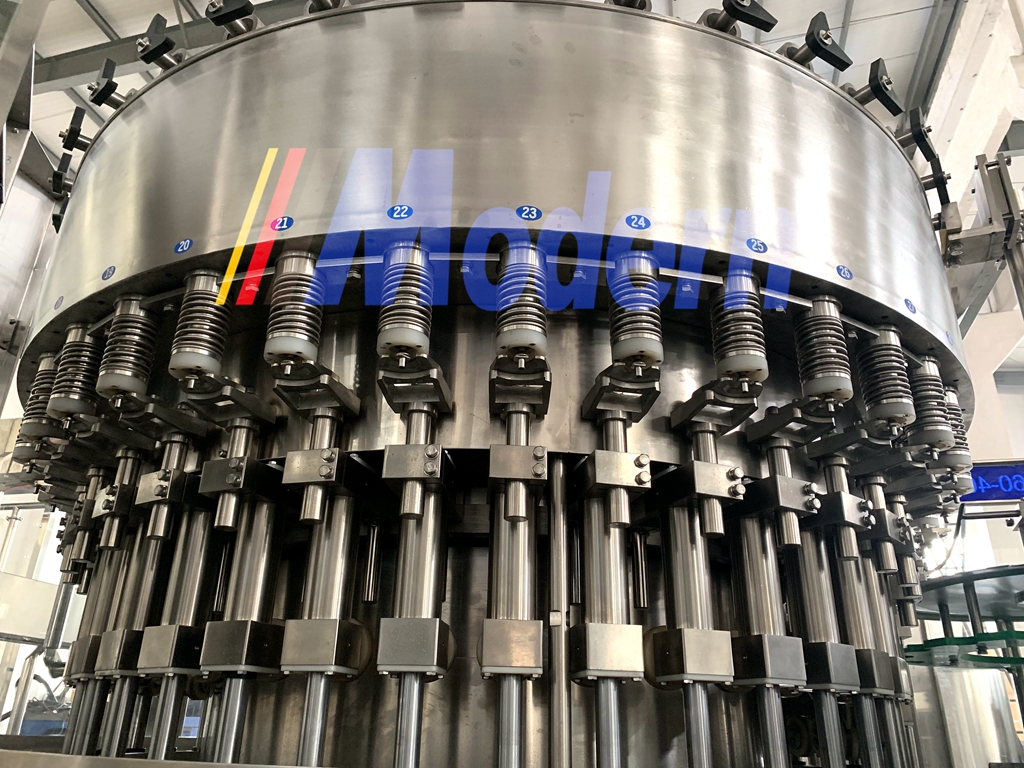

Bottle Filling part:

Rotary wheel fully made of stainless steel SUS 304.

Gravity filling method.

Filling valves are made of SUS304.

Filling valves are reasonably structured with accurate filling.

Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

Filler is driven through gears inside the machine frame.

Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.



bottling machine (4)


Bottle Capping part:

Sealing faucet (main part to control the credibility of sealing), is improved by experts with the design of alnico.

Besides the magnetic contortion variation device, there is variation dial which makes variation more easily. The benefit of this design is not only it can set the contortion, but also it makes contortion more precise and credible, and reduces inferior.Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out

mechanism. Cap distributing chute is equipped with a photocell switch to stop the capper when there is

no cap inside the chute.The capper is equipped with inlet bottle detection switch. Centrifugal way of cap arranging is adopted to reduce damage of caps.

A cap inspecting system is applied to control on-off of elevator.


 Model
 Heads  of
 washing  filling
 sealing
 Production
 capacity
 (bottle/hour)
 Suitable
 bottle
 diameter
 (mm)
 Spraying
 pressure
 (kg/cm2)
 Main
 motor  power
 (kw)
 Overall  dimension
 (LxWxH)
 (mm)
 Weight
 (kg)
 XGF16126
 16-12-6
 2000-4000
 Φ=50-  110=170
 330-  2250ml
 2-3
 2.2kw
 2400x1650x2500
 2500
 XGF18186
 18-18-6
 5000-7000
 2.2kw
 2600x1920x2550
 3500
 XGF24248
 24-24-8
 8000-12000
 3kw
 3100x2300x2800
 4500
 XGF323210
 32-32- 10
 12000- 15000
 5.5kw
 3800x2800x2900
 6500
 XGF404012
 40-40- 12
 16000- 20000
 7.5kw
 4600x2800x2900
 8500
 XGF505012
 50-50- 12
 20000- 24000
 11kw
 5450x3300x2900
 9800
 XGF606015
 60-60-15
 25000- 30000
 15kw
 6500x4500x2900
 12800



Manufacturing Process

MODERN manufacture all equipment in our own facilities, which is ECO environment buildings and certified with ISO and CE. MODERN highly concerns environment protection in all working areas by decreasing waste in all production processes.

It takes only two hours driving to the near major shipping seaport SHANGHAI, which provide the most economic shipping rate and fast transportation to most countries all over the world.

Water filling machine manufacturer


Our facility is composed of the following:

Veteran and skillful professionals and technicians

On-site engineering support

Materials requirement planning (MRP)

Production Engineering

Manufacturing and assembly

Components and machines testing

Hi-tech accurate machining centers


MODERN provide OEM and ODM machines and service tailor designed as per your different needs and goals with the most competitive prices. From individual machines, to turnkey solution service. From idea to real machine, you can expect your quality machines and services which would help to break the limitation of your business.

As a leading manufacturer of bottle filler in China. To keep up with most advanced industry technology and trends, we keep attending all sorts of training and activities.

OEM factory of bottle filling machine


Tailor Made | Tailored Design Solutions

Customer grows with company expansion, and production line extension as well. MODERN provides optimizing solution with tailored design machinery project to maximize customer’s benefit. Tailor made service covers our whole products range for various projects, with building and customizing automatic packaging systems. Our veteran engineer team will provide evaluation to your products, packaging requirement, and production demands, accordingly design customized equipment for your special needs.


MODERN customized in

Tailored design for equipment

Production processes

Modification and configuration of equipment.


MODERN lead customer in every size and step to a target business.

We are dedicated to customer’s success. Most of our customers return for more machines as their company grows fast and succeeds. No matter from mineral water to carbonated soft drinks, beer, juice, isotonics, tea or liquid dairy products for your current line, multi-station filling line, or a complete turnkey solution filling line, MODERN machinery is tailored to order.

Return custom visiting of filling line
