XGF
Modern
We supply complete solution of water bottling plant from A to Z, which includs Water treatment system, Automatic bottle rinsing filling capping machine, Air dryer, Automatic labeling machine, Automatic bottle packaging machine, Automatic palletizer system and the whole factory conveyor system.

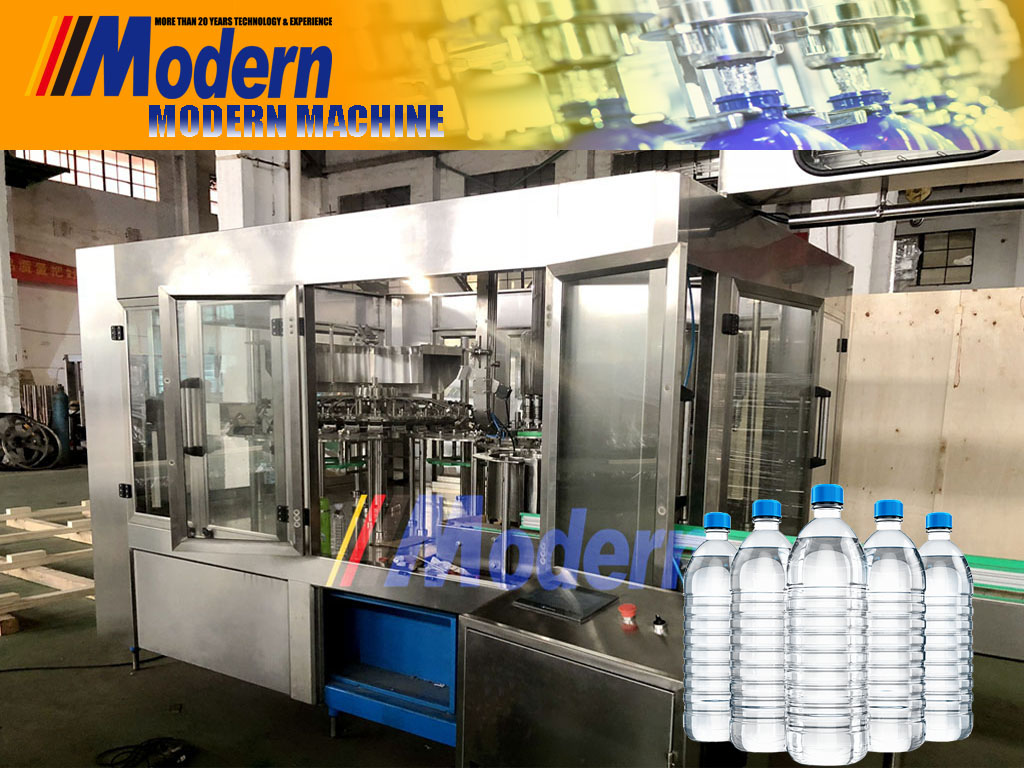

Modern brand water bottling machine collects washing, filling and capping together.It is mainly suitable for washing filling and capping round or square polyester bottles.It is researched and developed on the base of importing, assimilating and absorbing the advanced technology of Germany. Finished bottled water driven by the transmission motor. It is high automation, compact structure, beautiful appearance, convenient and simple operation, safe and reliable, continuous stable production and others. It is mainly used for washing, filing, and capping non-gas liquid, such as mineral water, pure water. The whole water bottling plant consists of water treatment system, bottle blower, bottle unscrambler, air conveyer, water bottling machine, labeling machine, and bottle packing machine. Besides, our bottling plant is able to meet different production requirements.
The prime features associated with water bottling machine are robust construction, low maintenance cost and simple to clean properties, these industrial RO systems are largely approved in the market. Modern brand water bottling machine can be purchased to obtain great benefits.
Machine structure
- washing, filling and capping part in one unit;
- one driving system makes the speed more stable
- need one person to operate the machine
- no noisy while running
- more compact
- different bottles can be applied in same machine (the bottle neck should be the same)
Washing part
- the star wheel to hold the bottle neck to avoid damage the bottle mouth
- there is nylon grip to protect bottle mouth
Filling part
- round liquid tank, no residual after filling
- the valves are stainless steel 304
- no bottle no filling
- filling level can be adjusted
Water Bottling Principle
Capping part
- there is anti-rotary blade to fix the bottle without moving
- the capping torque can be adjusted
Control system
- PLC control
- Touch screen
Electric part
- All the electric parts are well-known brand
| Model | Heads of washing filling sealing | Production capacity (bottle/hour) | Suitable bottle diameter (mm) | Spraying pressure (kg/cm2) | Main motor power (kw) | Overall dimension (LxWxH) (mm) | Weight (kg) |
| XGF16126 | 16-12-6 | 2000-4000 | Φ=50- 110=170 330- 2250ml | 2-3 | 2.2kw | 2400x1650x2500 | 2500 |
| XGF18186 | 18-18-6 | 5000-7000 | 2.2kw | 2600x1920x2550 | 3500 | ||
| XGF24248 | 24-24-8 | 8000-12000 | 3kw | 3100x2300x2800 | 4500 | ||
| XGF323210 | 32-32- 10 | 12000- 15000 | 5.5kw | 3800x2800x2900 | 6500 | ||
| XGF404012 | 40-40- 12 | 16000- 20000 | 7.5kw | 4600x2800x2900 | 8500 | ||
| XGF505012 | 50-50- 12 | 20000- 24000 | 11kw | 5450x3300x2900 | 9800 | ||
| XGF606015 | 60-60-15 | 25000- 30000 | 15kw | 6500x4500x2900 | 12800 |
Service
MODERN MACHINERYoffers engineer to assist you in installing your bottling machine. Upon installation of your equipment or line, the engineer stays on-site to watch your new equipment run smoothly and train your operators. Even after our specialist leaves your plant, we are ready to give you timely, courteous service when you need it.
Our engineer offers the following services:
1. Installation of equipment or packaging line at the customer's plant
2. Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
3. Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment's performance
4. Resolve equipment issues
5. Provide on-site training on all assigned procedures
Filling machine machining center
Container loading and shipping
We supply complete solution of water bottling plant from A to Z, which includs Water treatment system, Automatic bottle rinsing filling capping machine, Air dryer, Automatic labeling machine, Automatic bottle packaging machine, Automatic palletizer system and the whole factory conveyor system.
Modern brand water bottling machine collects washing, filling and capping together.It is mainly suitable for washing filling and capping round or square polyester bottles.It is researched and developed on the base of importing, assimilating and absorbing the advanced technology of Germany. Finished bottled water driven by the transmission motor. It is high automation, compact structure, beautiful appearance, convenient and simple operation, safe and reliable, continuous stable production and others. It is mainly used for washing, filing, and capping non-gas liquid, such as mineral water, pure water. The whole water bottling plant consists of water treatment system, bottle blower, bottle unscrambler, air conveyer, water bottling machine, labeling machine, and bottle packing machine. Besides, our bottling plant is able to meet different production requirements.
The prime features associated with water bottling machine are robust construction, low maintenance cost and simple to clean properties, these industrial RO systems are largely approved in the market. Modern brand water bottling machine can be purchased to obtain great benefits.
Machine structure
- washing, filling and capping part in one unit;
- one driving system makes the speed more stable
- need one person to operate the machine
- no noisy while running
- more compact
- different bottles can be applied in same machine (the bottle neck should be the same)
Washing part
- the star wheel to hold the bottle neck to avoid damage the bottle mouth
- there is nylon grip to protect bottle mouth
Filling part
- round liquid tank, no residual after filling
- the valves are stainless steel 304
- no bottle no filling
- filling level can be adjusted
Water Bottling Principle

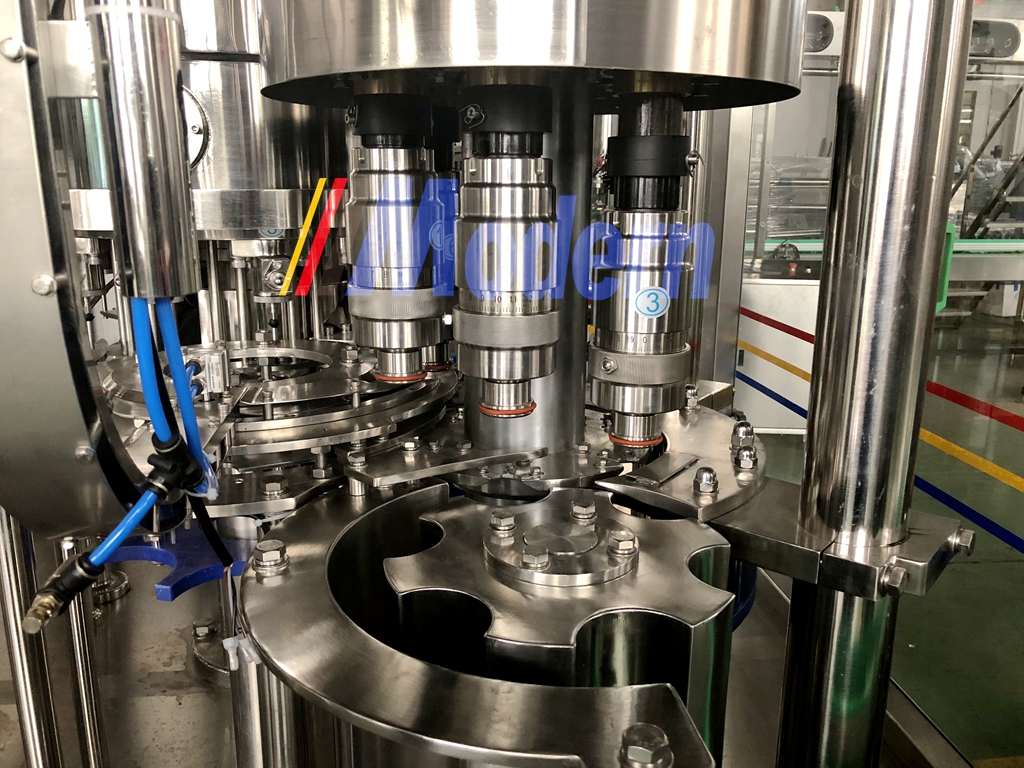

Capping part
