XGFD
Modern
We supply complete solution of carbonated soft drink production line from A to Z, which includs Water treatment system, Chilling system, beverage carbonating system, Automatic carbonated soft drink filling machine, Bottle warming Tunnel, Air dryer, Automatic labeling machine, Automatic bottle packaging machine, Automatic palletizer system and the whole factory conveyor system.
New trends, new products, and new packaging are emerging continuously.
For carbonated drink filling machine, no matter what products, MODERN will achieve your target with the best technology.

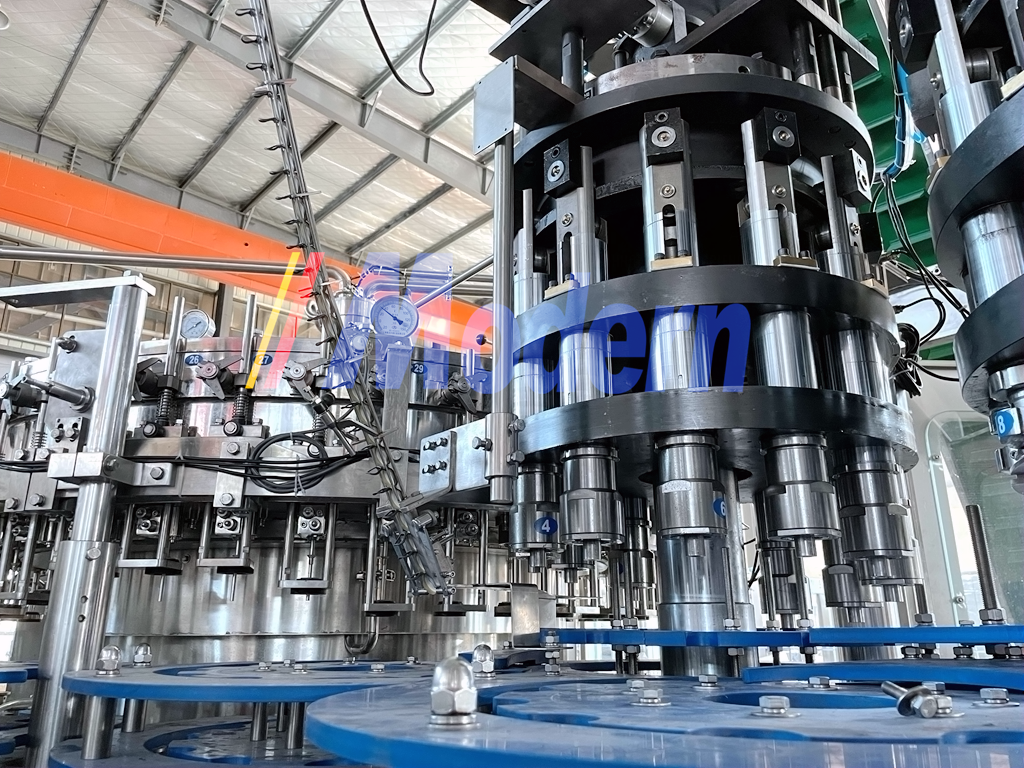

The series of Carbonated Soft Drink Machine for filling carbonated soft drink contains washing, filling and capping with complete automation, suitable for filling carbonated water drink into polyester bottles and PET bottle. Carbonated water machine, soda machine can be used for all kinds of PET bottles. The bottle neck blocking makes the process of changing bottles easily by only adjusting the height of conveyor chain. The filling process adopts the micro-pressure technology,which makes filling process faster and more stable.
Just check out the whole list of hi-tech carbonated soft drink filling machine at MODERN, You can find each kind of beverage machinery that you want here!
1. The air feeding device is used for the PET bottle / Glass bottle, and the bottle neck bottle is adopted. The bottle speed is fast and the bottle is not deformed;
2. This machine uses the advanced card bottle neck technology to avoid contact with the threaded mouth, which is more sanitary. The bottle is transported using the bottle neck technology. The bottle shape does not need to be adjusted, just change the diameter of the bottle. Guard plate;
3. Filling adopts valve lifting technology, and the filling valve adopts the new micro-pressure filling principle, which is accurate and accurate;
4. The screw cap adopts the cap screwing technology introduced by France, and the capper is selected to be installed at a low position and fed horizontally;
5. The machine is compact in structure, complete in control system, convenient in operation and high in automation.
Carbonated Soft Drink Bottle Filling Principle
Bottle Rinsing Part:
The rotary wheel is a fully SUS304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
Bottle Filling part:
Rotary wheel fully made of stainless steel SUS 304.
Isobaric filling method.
Filling valves are made of SUS304.
Filling valves are reasonably structured with accurate filling.
Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
Filler is driven through gears inside the machine frame.
Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck
Bottle Capping part:
Sealing faucet (main part to control the credibility of sealing), is improved by experts with the design of alnico.
Besides the magnetic contortion variation device, there is variation dial which makes variation more easily. The benefit of this design is not only water bottling machine can set the contortion, but also it makes contortion more precise and credible, and reduces inferior. Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism. Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch. Centrifugal way of cap arranging is adopted to reduce damage of caps.
A cap inspecting system is applied to control on-off of elevator.
| Model | Heads of washing filling sealing | Production capacity (bottle/hour) | Suitable bottle diameter (mm) | Filling temperature (℃ ) | Filler type | Spraying | Filling pressure (MPa) | Motor power (kw) | Overall dimension (LxWxH) (mm) | Weight (kg) |
| XGFD16126 | 16-12-6 | 2000-3000 | Φ=50-100=170 330-1500ml Φ50-Φ110 H=160-340 | 0-5 | Balanced pressure filler | 0.2-0.25 | 0.15-0.35 | 2.2+0.55 +0.12 | 2300x1600x2500 | 2800 |
| XGFD18186 | 18-18-6 | 4000-5000 | 0.15-0.35 | 2.2+0.55 +0.18 | 2600x1920x2550 | 3650 | ||||
| XGFD24248 | 24-24-8 | 5000-6000 | 0.15-0.35 | 3+0.55 +0.18 | 3100x2200x2800 | 4800 | ||||
| XGFD32328 | 32-32-8 | 6000-9000 | 0.2-0.4 | 5.5+0.55 +0.18 | 3850x3000x2850 | 6800 | ||||
| XGFD404010 | 40-40-10 | 10000-13000 | 0.2-0.4 | 7.5 | 4850x3800x2750 | 8650 | ||||
| XGFD505012 | 50-50-12 | 13000-16000 | 0.2-0.4 | 11 | 5750x3550x2750 | 10500 | ||||
| XGFD606015 | 60-60-15 | 17000-20000 | 0.2-0.4 | 15 | 6500x5500x2750 | 12800 |
