1. Bottle blowing system make PET plastic bottles ( Semi automatic / Fully automatic )
2. Water treatment system (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
3. Air conveyor for empty bottle loading
4. 3 in 1 monoblock Rinser filler capper
5. Cap loader load caps
6. Code printer (Ink-jet printer/ laser-jet printer
7. Air Dryer
8. Labeling machine ( PVC sleelve labeling machine/OPP hot melt glue labeling machine/Self-adheisive labeling machine )
9. End packaging ( PE shrink wrapping machine / Carton packing machine )
How to deploy mechanical filler sysetm to keep water crystal clear and contaminant free? How to achieve the maximum benefit with speed, accuracy and light weight bottles? Modern Machinery, the expert in bottle water filler machine, will always provide you with the best solution for your products.

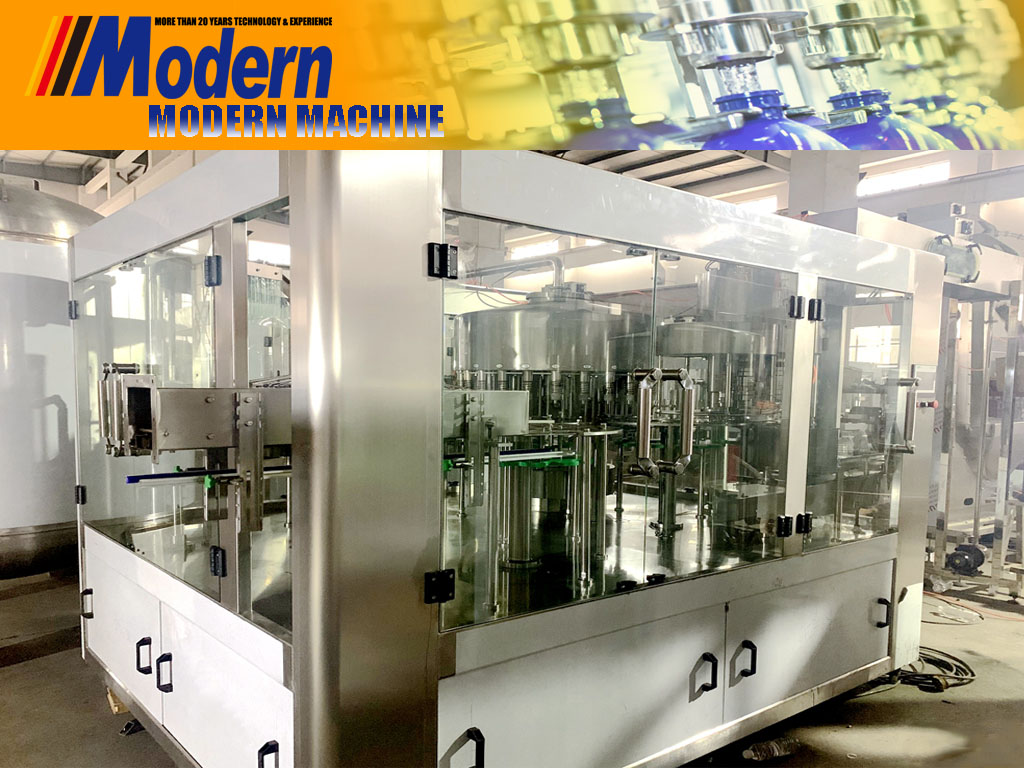

The water bottling machine is consisted of rinser filler capper all together. XGF water filler machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as drinking water, spring water, mineral water, pure water in PET bottle. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the water bottling plant process.

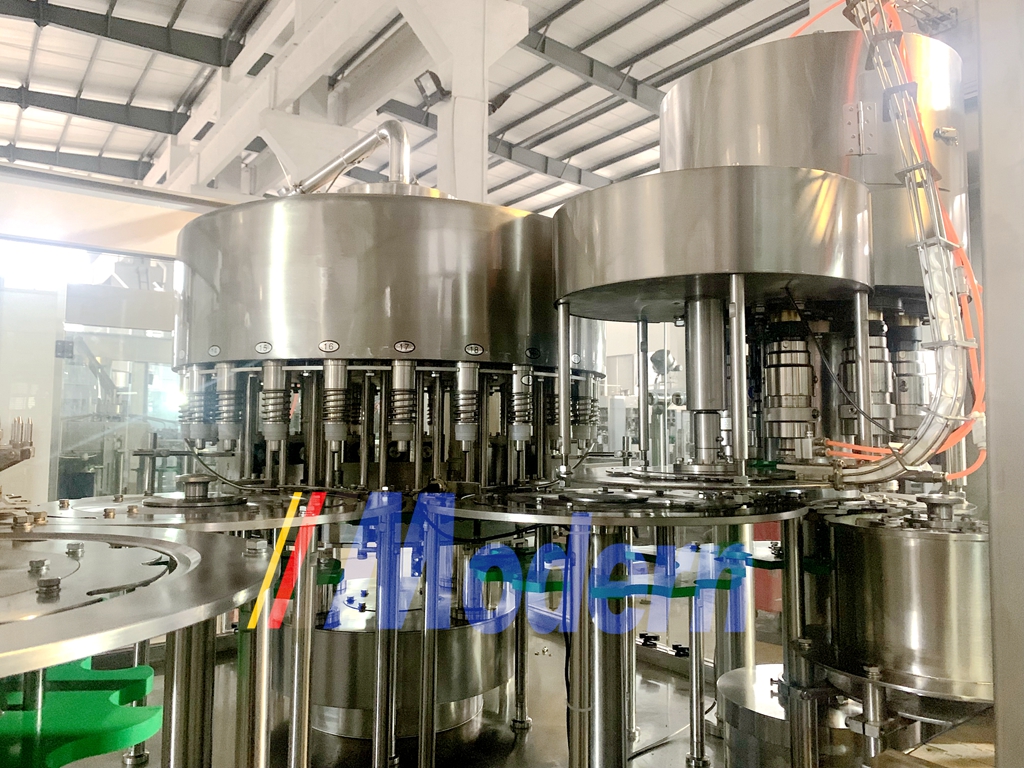

Equipment structure:
1. Rinser system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing
pump.
2. Filler system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capper system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.
Bottle Rinser System:
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
Bottle Filler System:
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
Water Filler Principle
Bottle Capper System:
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
Controling system
- PLC control
- Touch screen
Electric part
- All the electric parts are well-known brand
| Model | Heads of washing filling sealing | Production capacity (bottle/hour) | Suitable bottle diameter (mm) | Spraying pressure (kg/cm2) | Main motor power (kw) | Overall dimension (LxWxH) (mm) | Weight (kg) |
| XGF16126 | 16-12-6 | 2000-4000 | Φ=50- 110=170 330- 2250ml | 2-3 | 2.2kw | 2400x1650x2500 | 2500 |
| XGF18186 | 18-18-6 | 5000-7000 | 2.2kw | 2600x1920x2550 | 3500 | ||
| XGF24248 | 24-24-8 | 8000-12000 | 3kw | 3100x2300x2800 | 4500 | ||
| XGF323210 | 32-32- 10 | 12000- 15000 | 5.5kw | 3800x2800x2900 | 6500 | ||
| XGF404012 | 40-40- 12 | 16000- 20000 | 7.5kw | 4600x2800x2900 | 8500 | ||
| XGF505012 | 50-50- 12 | 20000- 24000 | 11kw | 5450x3300x2900 | 9800 | ||
| XGF606015 | 60-60-15 | 25000- 30000 | 15kw | 6500x4500x2900 | 12800 |
Service
MODERN MACHINERYoffers engineer to assist you in installing your bottling machine. Upon installation of your equipment or line, the engineer stays on-site to watch your new equipment run smoothly and train your operators. Even after our specialist leaves your plant, we are ready to give you timely, courteous service when you need it.
Our engineer offers the following services:
1. Installation of equipment or packaging line at the customer's plant
2. Coordinate schedule with mechanics to perform changeovers and preventive maintenance activities
3. Perform mechanical adjustments (if needed) on equipment and packaging line to optimize equipment's performance
4. Resolve equipment issues
5. Provide on-site training on all assigned procedures
